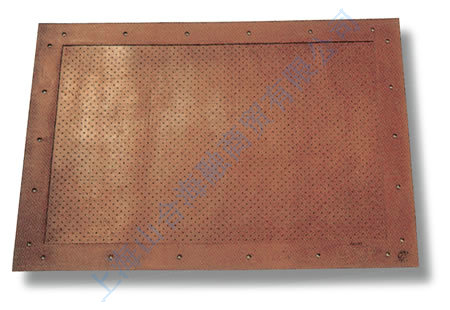

HIGH VOLTAGE RUBBER INSULATING BLANKETS
高压橡胶绝缘毯/绝缘垫

HIGH VOLTAGE RUBBER INSULATING BLANKETS

The RUBBER INSULATING BLANKETS are used as a protective device for protection of electrical workers from accidental contact with live electrical conductors or apparatus.
橡胶绝缘毯是一款便携式保护装置,用于防止电力操作人员意外触碰带电的电导体,装置,或电路。本产品选用合成橡胶,更增加产品的机械强度。适合用于斗车内,兼防滑、绝缘、防护等多重作用。

ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS206-01-02 750x1000 20KV / 1min 7000V
YS206-03-01 750x1000 20KV / 3min 17000V
YS206-01-03 910x910 20KV / 1min 7000V

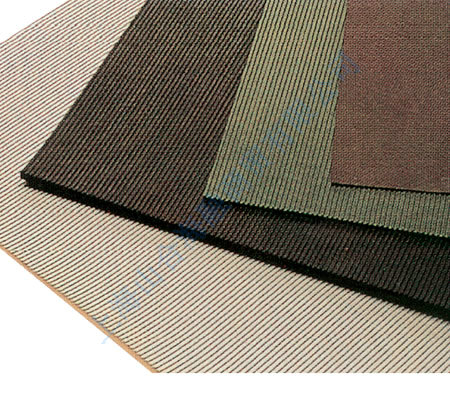

SWITCHBOARD MATTING
配电盘绝缘垫

SWITCHBOARD MATTING
ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
APPLICABLE
适用颜色
YS231-01-01 3mm 20KV / 1min 7000V BROWN(FLAT)棕色(平滑的)
YS231-02-01 6mm 20KV / 1min 7000V BROWN(FLAT)棕色(平滑的)
YS231-02-04 6mm 20KV / 3min 17000V GREEN(CORRUGATE)绿色(带楞的)
YS231-03-02 10mm 20KV / 1min 7000V BLACK(CORRUGATE)黑色(带楞的)

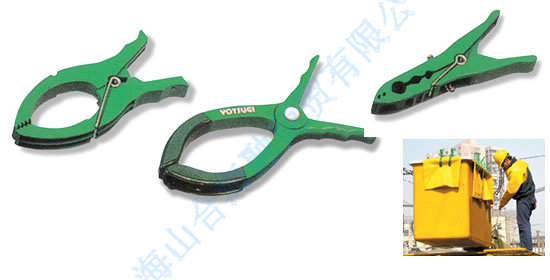

PLASTIC SHEET CLIPS
塑料绝缘毯夹

PLASTIC SHEET CLIPS
ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS211-01-01 SHEET CLIPS TYPE-1 1型毯夹
YS211-02-01 SHEET CLIPS TYPE-2 2型毯夹
YS211-03-05 SHEET CLIPS TYPE-3 3型毯夹/5型毯夹

HIGH VOLTAGE RUBBER INSULATING COVER
高压塑料绝缘瓷瓶罩

HIGH VOLTAGE RUBBER INSULATING COVER高压塑料绝缘瓷瓶罩
ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
APPLICABLE
适用
YS237-01-01 20KV / 1min 7000V INSULATING COVER绝缘瓷瓶罩
