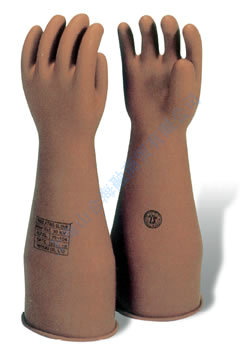

HIGH VOLTAGE RUBBER INSULATING GLOVES(高压橡胶绝缘手套)

HIGH VOLTAGE RUBBER INSULATING GLOVES高压橡胶绝缘手套

The RUBBER INSULATING GLOVES are used for protection of electrical workers from electrical shock.
(橡胶绝缘手套用于防止电力操作人员收到电击。)
The RUBBER INSULATING GLOVES are most important personal protective equipment.
(橡胶绝缘手套是重要的个人防护设备。)
We take carefully quality control to ensure using safety condition.
(我们严格控制质量以确保安全使用)

ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS101-32-04 455mm(17.91in) LL 30KV / 3min 26500V
YS101-32-03 455mm(17.91in) L 30KV / 3min 26500V
YS101-32-02 455mm(17.91in) M 30KV / 3min 26500V
YS101-31-04 455mm(17.91in) LL 20KV / 3min 17000V
YS101-31-03 455mm(17.91in) L 20KV / 3min 17000V
YS101-31-02 455mm(17.91in) M 20KV / 3min 17000V
YS101-90-04 375mm(14.94in) LL 20KV / 3min 17000V
YS101-90-03 375mm(14.94in) L 20KV / 3min 17000V
YS101-90-02 375mm(14.94in) M 20KV / 3min 17000V
YS101-20-01 455mm(17.91in) LL 20KV / 1min 7000V
YS101-21-01 455mm(17.91in) L 20KV / 1min 7000V
YS101-22-01 455mm(17.91in) M 20KV / 1min 7000V
YS101-20-03 375mm(14.94in) LL 20KV / 1min 7000V
YS101-21-03 375mm(14.94in) L 20KV / 1min 7000V
YS101-22-03 375mm(14.94in) M 20KV / 1min 7000V

LOW VOLTAGE RUBBER INSULATING GLOVES(低压橡胶绝缘手套)

LOW VOLTAGE RUBBER INSULATING GLOVES低压橡胶绝缘手套低压橡胶绝缘手套
ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS102-13-04 280mm(11.02in) LL 5KV / 3min 1000V
YS102-13-03 270mm(10.62in) L 5KV / 3min 1000V
YS102-13-02 270mm(10.62in) M 5KV / 3min 1000V
YS102-04-00 290mm(11.42in) LL 3KV / 1min 600V
YS102-01-00 285mm(11.22in) L 3KV / 1min 600V
YS102-02-00 280mm(11.02in) M 3KV / 1min 600V
YS102-03-00 275mm(10.82in) S 3KV / 1min 600V

LOW VOLTAGE RUBBER INSULATING GLOVES(低压橡胶绝缘手套)
(DOUBLE LAMINATION)(双层)

LOW VOLTAGE RUBBER INSULATING GLOVES(DOUBLE LAMINATION)双层低压橡胶绝缘手套
ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS102-10-01 270mm(10.62in) LL 3KV / 1min 600V
YS102-11-01 270mm(10.62in) L 3KV / 1min 600V
YS102-12-01 270mm(10.62in) M 3KV / 1min 600V

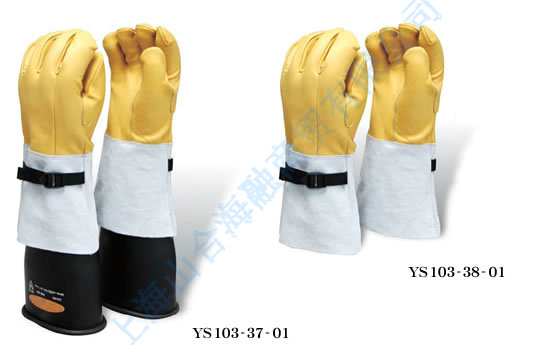

PROTECTIVE GLOVES(防护手套)

PROTECTIVE GLOVES防护手套

PROTECTIVE GLOVES are recomended to used for preventing RUBBER INSULATING GLOVES from physical and mechanical damages, over the rubber gloves.
防护手套推荐用来防止橡胶绝缘手套受到物理或者化学损坏,戴在橡胶手套上面。

Attention : Protective gloves should NOT be used alone for preventing from electric shock, and these have no insulated performance.
请注意:防护手套没有绝缘功能,不能单独用于防止电击。

ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
MATERIAL
材质
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
Classification
等级
YS103-37-01 9.45in
(240mm)
8 COWHIDE LEATHER
牛皮
/ / 1,2,3,4
YS103-37-02 9.84in
(250mm)
9 / / 1,2,3,4
YS103-37-03 10.24in
(260mm)
10 / / 1,2,3,4
YS103-37-04 10.63in
(270mm)
11 / / 1,2,3,4
ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
MATERIAL
材质
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
Classification
等级
YS103-38-01 9.45in
(240mm)
8 COWHIDE LEATHER
牛皮
/ / 00,0
YS103-38-02 9.84in
(250mm)
9 / / 00,0
YS103-38-03 10.24in
(260mm)
10 / / 00,0
YS103-38-04 10.63in
(270mm)
11 / / 00,0


THESE PROTECTIVE GLOVES WEAR HIGH AND LOW VOLTAGE RUBBER INSULATING GLOVES THEN PUT IT ON THE TOP.防护手套用于戴在高、低压绝缘手套的外面。
NOTICE: PROTECTIVE GLOVES HAVE NO ANY INSULATED PROPERTIES.这些防护手套没有任何的绝缘属性。

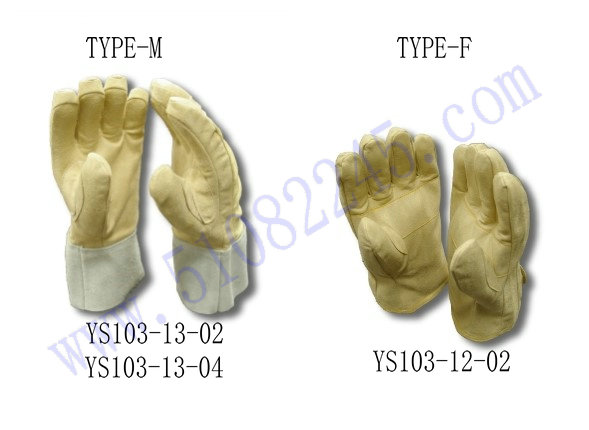

ITEM NO.
型号
SIZE
尺寸
YS103-12-02 TYPE-F free(无大小尺寸)
YS103-13-02 TYPE-M L
YS103-13-04 TYPE-M S
