HIGH VOLTAGE RUBBER INSULATING GLOVES(高压橡胶绝缘手套)

HIGH VOLTAGE RUBBER INSULATING GLOVES高压橡胶绝缘手套

The RUBBER INSULATING GLOVES are used for protection of electrical workers from electrical shock.
(橡胶绝缘手套用于防止电力操作人员收到电击。)
The RUBBER INSULATING GLOVES are most important personal protective equipment.
(橡胶绝缘手套是重要的个人防护设备。)
We take carefully quality control to ensure using safety condition.
(我们严格控制质量以确保安全使用)

ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS-101-91-01 18.11±0.51in(460±13mm) 8 10KV / 3MIN 7500V
YS-101-91-02 18.11±0.51in(460±13mm) 9 10KV / 3MIN 7500V
YS-101-91-03 18.11±0.51in(460±13mm) 10 10KV / 3MIN 7500V
YS-101-91-04 18.11±0.51in(460±13mm) 11 10KV / 3MIN 7500V
YS-101-92-01 18.11±0.51in(460±13mm) 8 20KV / 3MIN 17000V
YS-101-92-02 18.11±0.51in(460±13mm) 9 20KV / 3MIN 17000V
YS-101-92-03 18.11±0.51in(460±13mm) 10 20KV / 3MIN 17000V
YS-101-92-04 18.11±0.51in(460±13mm) 11 20KV / 3MIN 17000V
YS-101-93-01 18.11±0.51in(460±13mm) 8 30KV / 3MIN 26500V
YS-101-93-02 18.11±0.51in(460±13mm) 9 30KV / 3MIN 26500V
YS-101-93-03 18.11±0.51in(460±13mm) 10 30KV / 3MIN 26500V
YS-101-93-04 18.11±0.51in(460±13mm) 11 30KV / 3MIN 26500V
YS-101-94-01 18.11±0.51in(460±13mm) 8 40KV / 3MIN 36000V
YS-101-94-02 18.11±0.51in(460±13mm) 9 40KV / 3MIN 36000V
YS-101-94-03 18.11±0.51in(460±13mm) 10 40KV / 3MIN 36000V
YS-101-94-04 18.11±0.51in(460±13mm) 11 40KV / 3MIN 36000V

LOW VOLTAGE RUBBER INSULATING GLOVES(低压橡胶绝缘手套)

LOW VOLTAGE RUBBER INSULATING GLOVES低压橡胶绝缘手套

The RUBBER INSULATING GLOVES are used for protection of electrical workers from electrical shock.
(橡胶绝缘手套用于防止电力操作人员收到电击。)
The RUBBER INSULATING GLOVES are most important personal protective equipment.
(橡胶绝缘手套是重要的个人防护设备。)
We take carefully quality control to ensure using safety condition.
(我们严格控制质量以确保安全使用)

ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
Classification
等级
YS-102-42-01 11.02±0.51(in 280±13mm) 8 00
YS-102-42-02 11.02±0.51(in 280±13mm) 9 00
YS-102-42-03 11.02±0.51(in 280±13mm) 10 00
YS-102-42-04 11.02±0.51(in 280±13mm) 11 00
YS-102-43-01 11.02±0.51(in 280±13mm) 8 0
YS-102-43-02 11.02±0.51(in 280±13mm) 9 0
YS-102-43-03 11.02±0.51(in 280±13mm) 10 0
YS-102-43-04 11.02±0.51(in 280±13mm) 11 0

■ IEC, ANSI / ASTM Labeling Chart(IEC,ANSI/ASTM标记图)

CLASS
等级
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
GLOVE LABEL
手套标记
00 2.5KV / 3MIN 500V
GLOVE LABEL
0 5KV / 3MIN 1000V
GLOVE LABEL
1 10KV / 3MIN 7500V
GLOVE LABEL
2 20KV / 3MIN 17000V
GLOVE LABEL
3 30KV / 3MIN 26500V
GLOVE LABEL
4 40KV / 3MIN 36000V
GLOVE LABEL

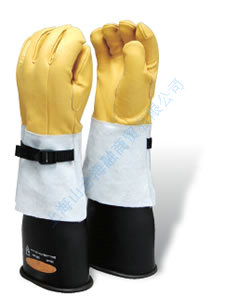

PROTECTIVE GLOVES(防护手套)

PROTECTIVE GLOVES防护手套

PROTECTIVE GLOVES are recomended to used for preventing RUBBER INSULATING GLOVES from physical and mechanical damages, over the rubber gloves.
防护手套推荐用来防止橡胶绝缘手套受到物理或者化学损坏,戴在橡胶手套上面。

Attention : Protective gloves should NOT be used alone for preventing from electric shock, and these have no insulated performance.
请注意:防护手套没有绝缘功能,不能单独用于防止电击。

ITEM NO.
型号
LENGTH
长度
SIZE
尺寸
MATERIAL
材质
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS103-37-01 9.45in
(240mm)
8 COWHIDE LEATHER
牛皮
/ /
YS103-37-02 9.84in
(250mm)
9 / /
YS103-37-03 10.24in
(260mm)
10 / /
YS103-37-04 10.63in
(270mm)
11 / /
