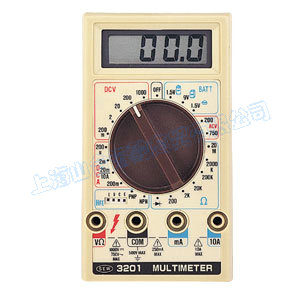

台湾标准电机SEW仪器仪表--ST-3201 Digital Multimeters



ST-3201   Multimeters
Digital Multimeters
ST-3201
FEATURES

 Display; 3-1/2 digit liquid crystal display (LCD) with max. reading of 1999.
 Polarity: Automatic, (-) negative polarity indicatin.
 Zero Adjustment: Automatic.
 Over Range Indicatin L Highest digit of (1) or (-1) is displayed.
 Low Battery Indication: The (BAT) is displayed when the battery voltage drops below the operating voltage.
 Measurement Rate: 3 measurements per second, nominal.
 Operating Temperature: 0 degree C to +/- 50 degree C, 0-70% RH.
 Storage Temperature: -20 degree C to +60 degree C, 0-80% RH, with battery rmoved.
 Accuracy: Accuracy specifications at 23 +/- 5 degrcc C, less than 75% RH.
 Power: Single, 006P 9 volt battery.
 Dimensions: 128(L) x 72(W) x 33(D) mm.
 Weight: Approx. 183g.
