6280 TB   Test Box
Functional checking for RCD tester, Loop testers and Insulation/Continuity testers

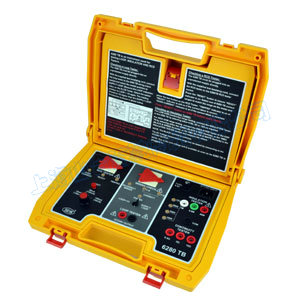

6280 TB
FEATURES

 Wide range of operating voltage from AC 210V/50Hz to 250V/50Hz.
 For checking AC voltage.
 For checking a RCD tester's test current & time in mA(ms).
 For checking a loop tester.
 For wiring check (Phase, Neutral, Earth).
 For checking continuity.
 For checking insulation (The maximum is 1000V).

 6280 TB is an ideal tool which provides verifications of Insulation testers, Continuity testers, RCD testers and Loop testers.
SPECIFICATIONS

RCD Testing
Range 10mA @ 150ms
30mA @ 150ms
150mA @ 30ms
Insulation Testing
Range 1M Ohm/9.9M Ohm/99M Ohm
Accuracy +/- 1%
Max. Testing 1.2kV
Continuity Testing
Range 0.5 Ohm/2 Ohm/10 Ohm
Accuracy +/- 0.05 Ohm / +/- 0.1 Ohm / +/-0.2 Ohm
Max. Current 300mA
LOOP Testing
Range Supply Loop/Supply Loop +1 Ohm
Accuracy 0.45 Ohm +/- 0.05 Ohm / 1.45 Ohm +/- 0.05 Ohm
Dimension 330 (L) x 260 (W) x 160 (D) mm
Weight Approx. 2570 g
