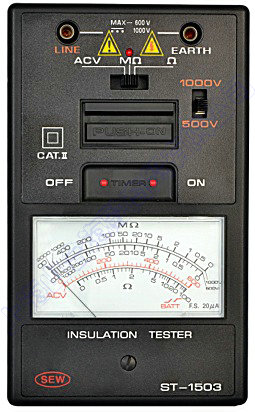

ST-1503 Insulation Testers Up To 1 kV (Analog)
FEATURES
High quality Tau Band movement.
It is a light and portable combination instrument for testing insulation (M Ohm). continuity (Ohm) and AC voltage.
Instant operation is possible with a pushbutton, in addition, for continuous measurement of M Ohm or Ohm, a convenient timer is provided with automatic power off after three to five minutes to save the battery power.
LED (red) indication when testing insulation and continuity.
Use of a high efficiency and accurate DC-DC converter.
Most suitable for insulation resistance measurement of electrical household appliances, power line distribution and installation.
CAT II 600V.
SPECIFICATIONS
INSULATION RESISTANCE
Test Voltage (DC V)
500V/1000V
Output Voltage on Open Circuit
+ 10%
Measuring Ranges (Mid-Scale Value)
0-1000M Ohm (20M Ohm))/0-2000M Ohm (40M Ohm)
Accuracy
+/- 5% of scale length
Short Circuit Current
1mA
Maximum Battery Current
Approx. 80mA (500V), 150mA (1000V)
CONTINUITY
Measuring Range
0-100 Ohm
Line Frequency Range
40-70Hz
Open Circuit Voltage
100mV
Short Circuit Current
22.5mA
Accuracy
+/- 5% of scale length
AC VOLTAGE
AC Voltage Range
0-600V AC
Accuracy
+/- 2.5% of full scale
GENERAL
Power Source
1.5V(SUM-3) x 6 Type AA
Dimensions
163(L) x 100(W) x 50(D)mm
Weight
Approx. 440g (battery included)
Accessories
Test leads, instruction manual, heavy-duty case, batteries
High quality Tau Band movement.
