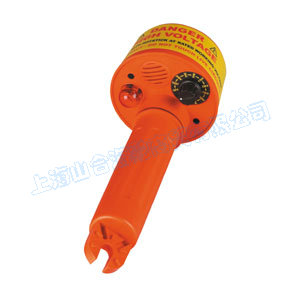

275 HP   High Voltage Testers
H.V. Proximity Detector
275 HP
FEATURES

 Sealed by "0" rings.
 8 voltage settings : 240Vac, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV and 275kV.
 High bright LEDs visual indication.
 Sound indication
 Easy-to proov method.
 Self-test selection.
 Use 3 x 15.V "C" batteries.
 High impact nylon casing.
 Non-contact work by proximity.
 Compatible with most link sticks.
 Light weight, robust & compact.
 Suitable for indoor and outdoor use.
 Detect low voltage on any systems.
 Easy access to batteries.
 No special parts needed.
 Simple and efficient to use.
 Weight : Approx. 560g
 Meets

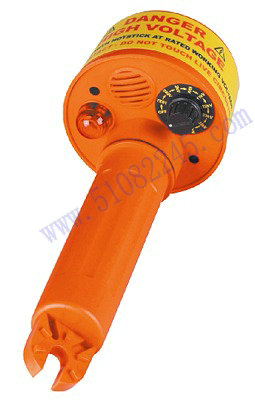

 The SEW 275 HP is a high voltage proximity detector. It has eight voltage detection settings from 240Vac to 275Vac. The 275 HP consists of an internal pickup sensor plate, a sensitivity selector, a visual and a sound annunciator. With the 275 HP, physical contact with electrical conductors is not necessary when testing for live lines. This tester works by proximity.
 Its sensor senses the radiated field which surrounds live conductors. Radiated field strength increases with voltage and decreases quickly with distance or earth shielding. The radiated field from a cable of closely bunched conductors suppplied by three phase power tends to cancel (See "Limitations of use" paragraph). Detecting distance of a 250Vac single live wire is approximately 10cm. With a bunched neutral and earth cable, as in a flexible cable, the distance is reduced to 5cm.
 Some of the typical uses are: identify and check live cable, find fault in flexible cables, check earth equipment, service noen lightning, trace live wires, check high frequency radiation, detect residual or induced voltages. For example, faults in damaged flexible cables are found by applying low voltage to each conductor. Earthing the remainder and moving the tester along the cable until the change in condition is obtained. (Flexible cables which are used in mining and building industries, are readily repairable when the break in the cable is located.)
 When testing for high voltage, the rotary switch (attenuator) is used to identify and differentiate various HV live cables. The tester must be used in conjunction with a long and insulating rod when measuring high voltage (kV). However, the 275 HP is a non-contact tester and it is advised that the tester should never come into contact with cables (kV) as this tester is merely a non-contact AC proximity tester.
 Checking or proofing the tester is easy. Switch the sensitivity to 240V and place the dome against a low voltage live conductor or rub the dome with a cloth or against an item of clothing as this generates a static DC which triggers the detection of circuit. The light and beeper should go "ON" as a wire is live.
 LIMITATIONS OF USE:
 It is recommended that the 275 HP is not used in HV yards of mixed voltages. In the presence of mixed voltages, the tester can become unreliable.
 Problems can arise when the tertiary circuit of a 275/133/11kV transformer is tested. The electric field of the HV and MV bus bars can trigger the detector when it is about 3m above the ground. This is common with most of the electric field voltage detectors, and the users should be aware of it. The tester can pick up adjacent circuit to the one being tested and indicate the wrong information to the user.
特 點


● 八檔電壓設計:240Vac、2kV、6kV、11kV、22kV、 33kV、132kV、275kV。.
● 高亮度的發光二極體指示。
● 高響度的蜂鳴器。
● 簡易而方便的操作方法。
● 設計有自我檢驗功能。
● 輕巧而堅固的外殼材質。
● 具有防水功能設計。
● 使用時,採取感應式檢測,不直接接觸電源,安全性高。
● 配合絕緣伸縮桿,高度可彈性控制。
● 可使用於室內與室外。
● 可應客戶需要,作特殊電壓檔位設計。
● 符合 以下标准:

用 途
提供作為檢查通電纜線,檢查軟性纜線,檢查接地設備,檢查氖氣燈,追蹤通電電線, 檢查高頻率輻射,偵測殘留或導入電壓。
規 格
型號 系列(可以调节的电压档位)
275kV01 OFF--TEST--240V--2kV--6kV--11kV--22kV--33kV--132kV--275kV
275kV02 OFF--TEST--240V--3.3kV--6.6kV--11kV--22kV--33kV--66kV--132kV--275kV
275kV03 OFF--TEST--240V--11kV--22kV--33kV--66kV--110kV--132kV--210kV--275kV
275kV04 OFF--TEST--2.3kV--6kV--11kV--22kV--33kV--132kV--275kV
500kV01 OFF--TEST--240V--3.3kV--11kV--22kV--33kV--66kV--110kV--220kV--330kV--500kV
500kV02 OFF--TEST--240V--4.2kV--15kV--69kV--115kV--230kV--345kV--500kV
500kV03 OFF--TEST--240V--69kV--115kV--138kV--230kV--500kV
500kV04 OFF--TEST--230V--3kV--6kV--10kV--35kV--66kV--110kV--220kV--330kV--500kV
230kV01 OFF--TEST--240V--69kV--115kV--138kV--230kV
230kV02 OFF--TEST--240V--4.2kV--15kV--25kV--35kV--69kV--115kV--230kV
220kV01 OFF--TEST--240V--3.3kV--6.6kV--11kV--22kV--33kV--66kV--110kV--220kV
33kV01 OFF--TEST--33kV
11kV01 OFF--TEST--11kV
115kV01 OFF--TEST--240V--11kV--15kV--34.5kV--69kV--115kV
