TSB Trip Saver Box
----------部分中文介绍产品已停产或参数有变更,内容仅供参考。

TSB

Trip Saver Box

Part Number(s)
9062-UC
Download Links

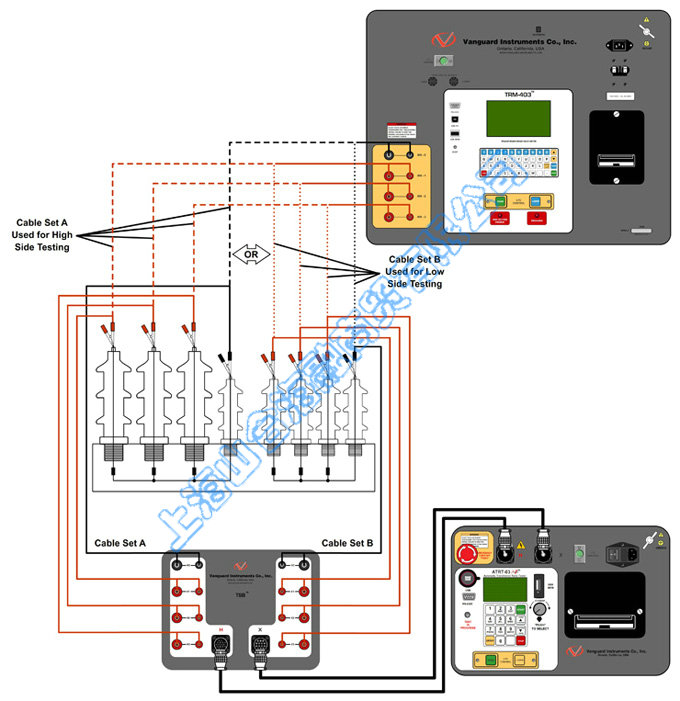

The Vanguard TSB can be used with a Vanguard ATRT-03 series turns ratio tester to perform transformer turns ratio tests using the same cable set provided with the TRM-203/403. Using the TSB, there is no need to connect and reconnect cables from the transformer after the initial connections are made. The user can conveniently perform resistance tests using the TRM-203/403 and turns ratio tests using an ATRT-03 without having to make trips to the transformer to connect and disconnect cables.

TSB

Cables

TSB

Technical Specifications
