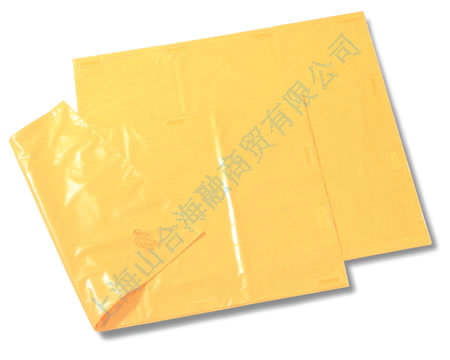

HIGH VOLTAGE PLASTIC INSULATING SHEETS高压塑料绝缘毯/绝缘垫

HIGH VOLTAGE PLASTIC INSULATING SHEETS

The PLASTIC INSULATING SHEETS are used as a portable protective device for protection of electrical workers from accidental contact with live electrical conductors, apparatus, or circuits.
塑料绝缘毯采用EVA材料制作,是一款便携式保护装置,用于防止电力操作人员意外触碰带电的电导体,装置,或电路。
The PLASTIC INSULATING SHEETS which substitute for rubber insulating products, are very light and are easy to use compared with rubber insulating products.
EVA材料制作的EVA材料制作跟橡胶绝缘毯相比,具有绝缘性能强,机械强度适中,轻便的特点,WQ可以替代橡胶绝缘毯。

ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS203-11-01 600x1000 20KV / 1min 7000V
YS203-11-02 680x800 20KV / 1min 7000V
YS203-11-03 680x800 20KV / 1min 7000V
YS203-11-04 900x1000 20KV / 1min 7000V
YS203-11-05 800x1000 20KV / 1min 7000V
YS203-11-06 600x1000 20KV / 1min 7000V
YS203-11-20 700x1500 20KV / 1min 7000V
YS241-01-01 600x1000 20KV / 3min 17000V
YS241-01-02 680x800 20KV / 3min 17000V
YS241-01-03 680x1200 20KV / 3min 17000V
YS241-01-04 800x1000 20KV / 3min 17000V
YS241-01-05 900x1000 20KV / 3min 17000V
YS242-01-01 600x1000 30KV / 3min 26500V
YS242-01-02 680x800 30KV / 3min 26500V
YS242-01-03 680x1200 30KV / 3min 26500V
YS242-01-04 800x1000 30KV / 3min 26500V
YS242-01-05 900x1000 30KV / 3min 26500V

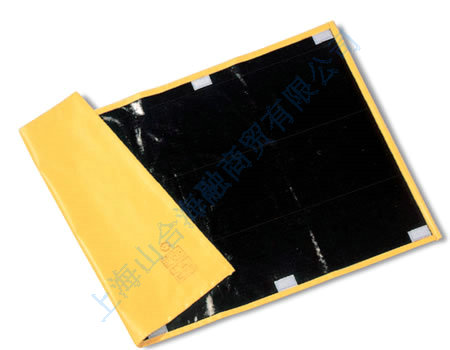

LOW VOLTAGE PLASTIC INSULATING SHEETS低压塑料绝缘毯/绝缘垫

LOW VOLTAGE PLASTIC INSULATING SHEETS
ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS209-01-01 400x800 3KV / 1min 600V
YS209-01-02 500x1000 3KV / 1min 600V
YS209-01-03 600x1000 3KV / 1min 600V

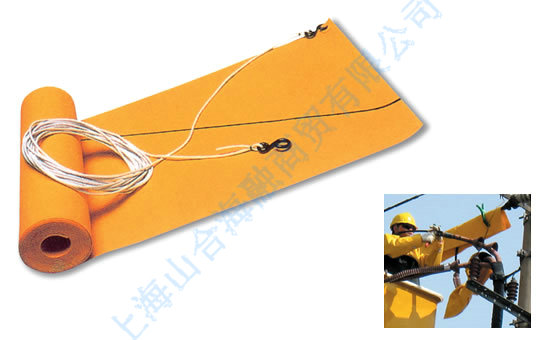

PLASTIC INSULATING SHEET FOR POLE塑料绝缘包毯

PLASTIC INSULATING SHEET FOR POLE
ITEM NO.
型号
SIZE
尺寸
A.C.PROOF TEST VOLTAGE
测试电压
A.C.MAXIMUM USE VOLTAGE
Z大使用电压
YS430-01-01 410mmx4.5m 20KV / 1min 7000V
YS435-01-01 410mmx4.5m 20KV / 3min 17000V
YS207-02-01 410mmx8m 20KV / 1min 7000V
YS435-02-02 410mmx8m 20KV / 3min 17000V

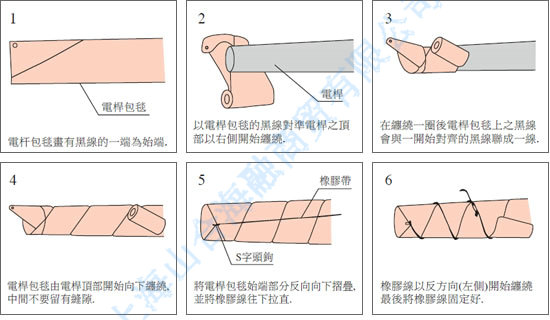

PLASTIC INSULATING SHEET FOR POLE
