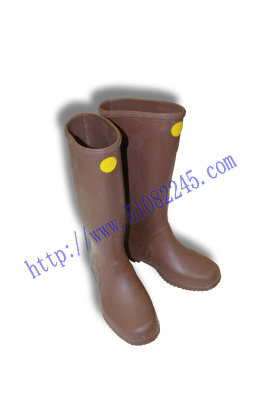

HIGH VOLTAGE RUBBER INSULATING BOOTS高压橡胶绝缘靴
The RUBBER INSULATING BOOTS are used for protection of electrical workers from electrical shock while working on a live electric wire operation.
高压橡胶绝缘靴用于防止电力操作人员在带电操作时受到电击的危险。
The RUBBER INSULATING BOOTS are very important personal protective equipments are very important personal electrical working, these are manufactured under very strict quality control. these are devised so as to put on easily and the reinforced rubber is used partly to strengthen the structure.
高压橡胶绝缘靴是非常重要的个人防护设备,对带电操作特别重要。他们都是在非常严格的质量控制下生产,他们的设计容易穿着,在部分部位选用加强型橡胶已强化绝缘靴的结构。
ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压
|
A.C.MAXIMUM USE VOLTAGE
Z大使用电压 |
YS111-09-03 |
25 |
20KV / 1min |
7000V |
YS111-09-04 |
25.5 |
20KV / 1min |
7000V |
YS111-09-05 |
26 |
20KV / 1min |
7000V |
YS111-09-06 |
26.5 |
20KV / 1min |
7000V |
YS111-09-07 |
27 |
20KV / 1min |
7000V |
YS111-09-08 |
28 |
20KV / 1min |
7000V |
YS111-09-09 |
29 |
20KV / 1min |
7000V |
YS111-09-10 |
30 |
20KV / 1min |
7000V |
YS111-09-11 |
31 |
20KV / 1min |
7000V |
YS113-01-03 |
25 |
20KV / 3min |
17000V |
YS113-01-04 |
25.5 |
20KV / 3min |
17000V |
YS113-01-05 |
26 |
20KV / 3min |
17000V |
YS113-01-06 |
26.5 |
20KV / 3min |
17000V |
YS113-01-07 |
27 |
20KV / 3min |
17000V |
YS113-01-08 |
28 |
20KV / 3min |
17000V |
YS113-01-09 |
29 |
20KV / 3min |
17000V |
YS113-01-10 |
30 |
20KV / 3min |
17000V |
YS113-01-11 |
31 |
20KV / 3min |
17000V |
YS112-01-03 |
25 |
30KV / 3min |
26500V |
YS112-01-04 |
25.5 |
30KV / 3min |
26500V |
YS112-01-05 |
26 |
30KV / 3min |
26500V |
YS112-01-06 |
26.5 |
30KV / 3min |
26500V |
YS112-01-07 |
27 |
30KV / 3min |
26500V |
YS112-01-08 |
28 |
30KV / 3min |
26500V |
YS112-01-09 |
29 |
30KV / 3min |
26500V |
YS112-01-10 |
30 |
30KV / 3min |
26500V |
YS112-01-11 |
31 |
30KV / 3min |
26500V |

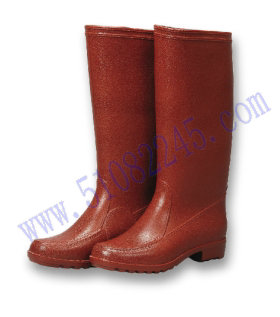

HIGH VOLTAGE PLASTIC INSULATING BOOTS(高压塑料绝缘靴)
The PLASTIC INSULATING BOOTS are used for protection of electrical workers from electrical accident whileworking on a live electric wire operation.
高压塑料绝缘靴用于防止电力操作人员在带电操作时受到电击的危险。
These boots are very important personal protective equipments as RUBBER INSULATING GLOVES for safe electrical working, these are manufactured under very strict quality control.
高压塑料绝缘靴跟橡胶绝缘手套一样,是非常重要的个人防护设备,对带电操作特别重要。他们都是在非常严格的质量控制下生产。
ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压
|
A.C.MAXIMUM USE VOLTAGE
Z大使用电压 |
YS111-05-01 |
24 |
20KV / 1min |
7000V |
YS111-05-02 |
24.5 |
20KV / 1min |
7000V |
YS111-05-03 |
25 |
20KV / 1min |
7000V |
YS111-05-04 |
25.5 |
20KV / 1min |
7000V |
YS111-05-05 |
26 |
20KV / 1min |
7000V |
YS111-05-06 |
26.5 |
20KV / 1min |
7000V |
YS111-05-07 |
27 |
20KV / 1min |
7000V |
YS111-05-08 |
28 |
20KV / 1min |
7000V |
PLASTIC INSULATING HELMETS(塑料绝缘安全帽/头盔)
The PLASTIC INSULATING HELMETS are used for protection of electrical workers, on their head from electrical shock or from falling materials.
塑料绝缘安全帽/头盔是电力操作人员戴在头上,用于防止电击和高空跌落物
These helmets are safety, light, and superior to mechanical powers.
塑料绝缘安全帽/头盔安全、轻便、具有高强度的机械力。
These helmets are execellent special quality of electrical insulation, and to though against quality of weather.
塑料绝缘安全帽/头盔具有电气绝缘质量,对抗恶劣的天气。
ITEM NO. 型号 |
SIZE 尺寸 |
A.C.PROOF TEST VOLTAGE 测试电压
|
A.C.MAXIMUM USE VOLTAGE
Z大使用电压 |
APPLICABLE 适用颜色 |
YS125-02-01 |
14.5x20.5x23 |
20KV / 1min |
7000V |
YELLOW黄色 |
YS125-02-02 |
14.5x20.5x23 |
20KV / 1min |
7000V |
WHITE白色 |
YS125-02-03 |
14.5x20.5x23 |
20KV / 1min |
7000V |
RED红色 |
YS125-03-01 |
14.5x20.5x23 |
20KV / 3min |
17000V |
YELLOW黄色 |
YS125-03-02 |
14.5x20.5x23 |
20KV / 3min |
17000V |
WHITE白色 |
YS125-03-03 |
14.5x20.5x23 |
20KV / 3min |
17000V |
RED红色 |
