AL-56FL   Accessories
Test Leads
Fused Test Probes with Silicone Test Leads
AL-56FL
FEATURES

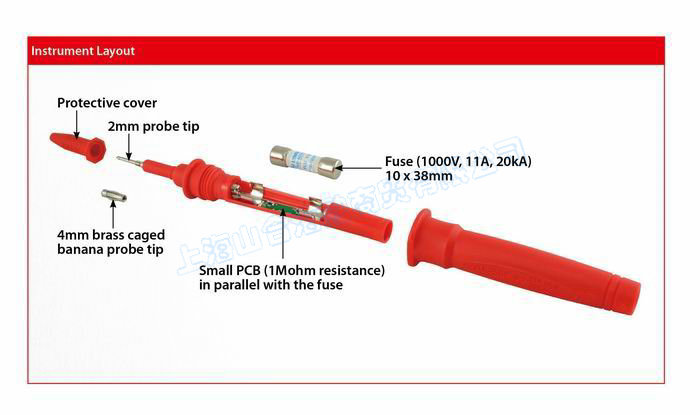

 AL-56FL is an ideal tool which shows the indication of live voltage even with blown fuse.
 2 replaceable fast-acting fuses are built-in. The specs of the fuses are 1000V, 11A with internal rating of 20kA AC/DC.
 Provide additional testing protection.
 Help to prevent a possible mis-indication when there is voltage present.
 CAT III 1000V, CAT IV 600V, 10A with protective cover.
 2mm probe tips, removable 4mm brass caged banana probe tips are also included.
 Include High-quality silicone test leads, 1.5 meter long.
 Wipe the fused test probes and silicone test leads periodically with a damp cloth and detergent. Do not use abrasives or solvents.
 Operating temperature: -20 degree C to +50 degree C (-5 degree F to 120 degree F)
 One year warranty
 Can't be used on current mode with blown fuse.
 Digital Multi-meter input impedance : When the fuse inside the test probe is blown, there is a 1Mohm resistor?|s value in parallel with the blown fuse. This will allow the digital multi-meter to take a measurement reading. But different input impedances of digital multi-meters will affect the reading errors. The voltage reading is about 90.9% of the actual voltage with a blown fuse when users use a digital multi-meter with an input impedance of 10Mohm.
