台湾标准电机SEW仪器仪表--AL-24-1 ~ AL-24-5 Accessories Test Leads



AL-24-1 ~ AL-24-5   Accessories
Test Leads
AL-24-1 ~ AL-24-5
FEATURES

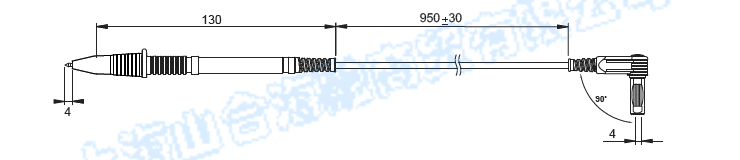

 Wire : PVC UL 1803/18AWG, Length : 1100 +/- 30mm, Out diameter : 3.5 mm, Temperature tolenrance range : -40 degree ~ 105 degree, Braid copper wires : 64/0.12mm
 Terminal : Right-angle 4mm brass (nickel plated) banana plug with caged and insulated sheathing to avoid the brass oxidation.
 Rating : CAT III 1000V 10A / CAT IV 600V 10 A
