Phase Rotation Indicated on Large Lilquid Crystal Display.
Small and Rugged Enclosure.
Phase Presence Indicated on Large Liquid Crystal Display.
Color-coded Test Leads.
Phase Presence Indication from as low as 40Vac to as high as 700Vac.
Fused.
Lightweight, Robust & Compact.
, 61010-2-032 CAT III 600V.

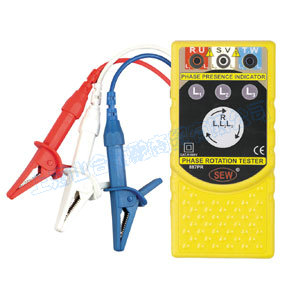

The 887 PR is a 3 Phase Presence and Rotation Indicator. It does not need any batteries as it delivers its power from the system under test. It can be utilized on a 3 Phase Powered System without having to worry about damage to the tester or the system.
Once connected to a 3 phase power system, it indicates the Phase presence by showing its corresponding LCD symbol. It displays the rotation (closkwise or counter-clockwise) on the LCD.
This instrument represents the quickest and easiest way for verifying the presence and rotation of a 3 Phase System.
You can, before connecting supply to load, and from the supply side quickly and easily verify the presence of the three Phases on a 3 Phase Power System and confirm the phase rotation on a Powered 3 Phase System.
3 Phase Presence Indication circuit: This circuit uses the LCD to indicate if a phase is present. These LCD indicators will light up when the voltage across any two phases are more than 40Vac. This product does not require any batteries as it takes it's power from the circuit under test.

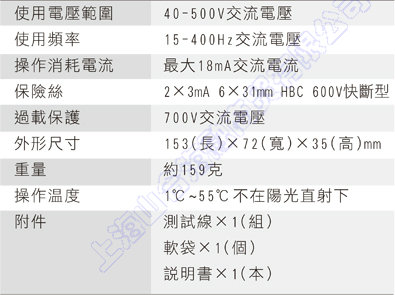

SPECIFICATIONS
ELECTRICAL
Determination of th Phase Presence
Nominal Voltage for Phase Presence Indication (the voltage required for LCD L1, L2, L3 indicators to come on) : From 40Vac to 700Vac
Frequency Range
From 15Hz to 400Hz
Determination of the Phases Rotary Field Direction
Direction Indication by LCD Display (the voltage required to have the LCD Direction Arrows to indicates and the L1, L2, L3 or L3, L2, L1 indicators to show : From 40 to 700Vac.
Indicates Phase Rotation.
● 供量測三相電源的相序、欠相狀況及馬達轉向、 馬達接線辨讀
