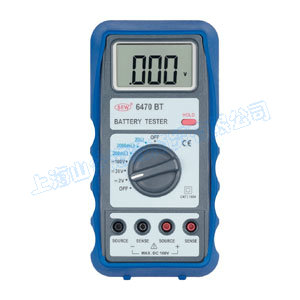

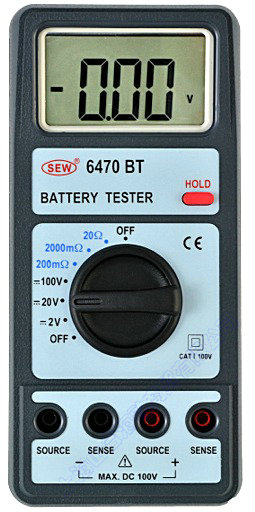

6470 BT   Battery Tester
6470 BT
FEATURES

 2000-count LCD
 DC Voltage measurement.
 4-wire resistance measurement.
 Data Hold function.
 Low Battery indication.
 9VDC power supply.
 Measure battery types : Ni-cd, Ni-MH, Li-ion.
 Simple operation.
 Lead resistance and contact resistance eliminated.

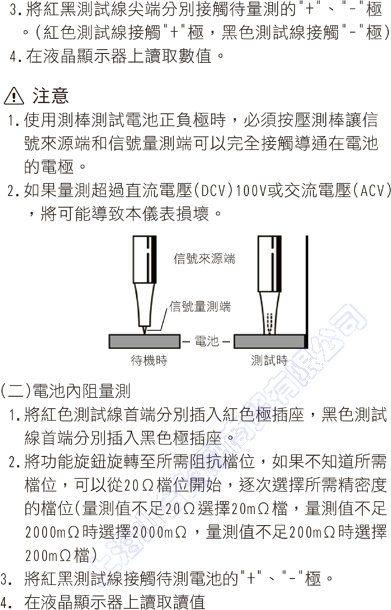

 When contacting the probes with the battery terminals, press the probes until the inner pin conductors are fully recessed, and both SOURCE and SENSE conductors make good contact.
 The 6470 BT battery resistance tester can measure the resistance of rechargeable batteries and DC voltage. The frequency of the output signal for resistance measurement is approximately 1kHZ.
 The 4-wire measurement method can reduce contact resistance and test lead resistance. The 6470 BT can also test Ni-cd, Ni-MH, Li-ion batteries.
特 點
● 6470 BT電池測試表可以量測充電電池(或稱二次電池)的內阻及電壓。量測頻率為1kHz，
使用4線式量測方式 ，減少了測試線的接觸阻抗，可以量測充電電池例如:手機鋰電池(Li-ion)、
鎳氫電池(Ni-MH)，判斷電池的狀態。
● LCD31/2位液晶顯示器，Z大顯示1999 ˙電池電壓量測
● 4線式電阻量測
● 讀值鎖定功能設計
● 電源不足顯示
● 9V電池操作電源
● 量測電池種類:鋰(Li-ion)、鎳氫(Ni-MH) ˙操作簡易
● 線阻和接觸電阻減低

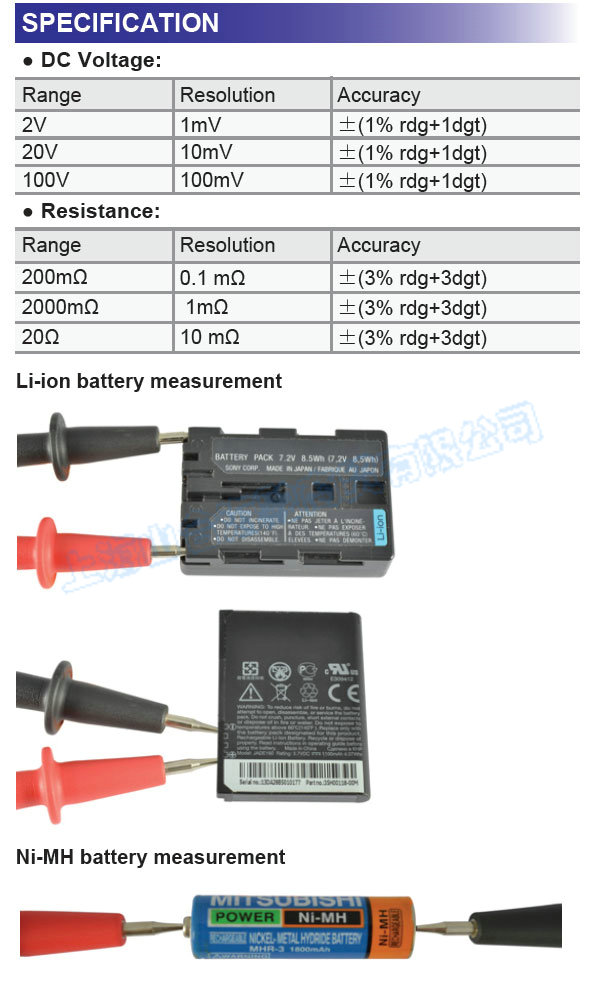

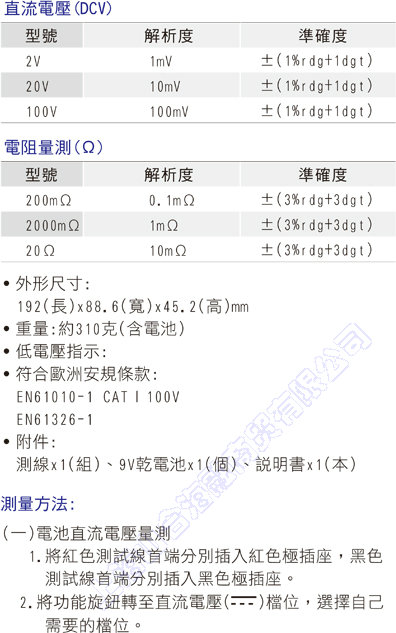

規 格 (23°C±5°C ＜80%R.H.)
