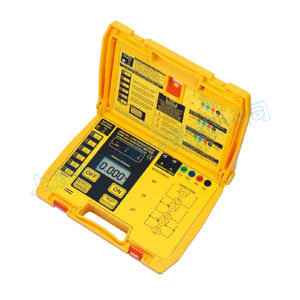

6237 DLRO   Low Resistance Ohm Testers
6237 DLRO
FEATURES

 Microprocessor controlled.
 Measure down to 1u Ohm.
 6 ranges from 2.000M Ohm to 200.0 Ohm.
 Maximum resolution of 1u Ohm.
 Three test currents with over-temperature protection.
 Four terminal measurement.
 Protection against inadvertent connection to over-voltage.
 Clear & large liquid crystal display.
 Potential lead resistance, current lead resistance checks.
 "Full Featured" EnerSave (tm) inside.
 EnerSave (tm) Auto-Hold.
 EnerSave (tm) Auto-Off.
 Battery operated, robust & compact.
 Indicators shows if reading may be invalid (Rp, Rc).
 "O-Ring" sealed case.
 Portable-Rechargeable battery.
 , EN 61326, EN 55011, EN61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11.
 The 6237 DLRO is a "full feature professional instrument". The RUGGED and "O-RING" SEALED Digital Low Resistance Ohm and Contact Meter is specially designed to measure very low resistance accurately and display the results directly on the large and clear LCD. The 6237 DLRO makes measurements by passing a constant current through the device under test (generally a conductor, contact or low resistance) and measuring the voltage across it. The low resistance is then calculated by Ohm's law.
 This superb instrument is powered by rechargeable battery. It is supplied complete with an instruction manual and test report/QA certificate. This ensures that every product is not just fully functional and calibrated after the assembly lines, but also within tight specification tolerances before leaving the strict quality control of Standard Electric Works.
 It has visual LED checks for excessive; potential lead resistance (Rp) and current lead resistance (Rc). Should the instrument become too warm, the temperature sensor will shut down the current (1sec Off).
 This instrument is indispensable to laboratory applications and to field applications to measure bonding joints, circuit brakers contact resistance, fuse resistance, testing earth bonds in mines, rail bond when a rail is used as part of a communication system or for power transmission, checking the plating quality on PCBs, contacts of relays, continuity or ring circuits and of protective conductors etc...
SPECIFICATIONS

Low Resistance Ranges/Resolution 0-2.000M Ohm/1u Ohm
0-20.00M Ohm/10u Ohm
0-200.0M Ohm/100u Ohm
0-2.000 Ohm/1M Ohm
0-20.00 Ohm/10M Ohm
0-200.0 Ohm/100M Ohm
Accuracy 0-2.000M Ohm : +/- (5%+5dgt)
0-20.00M Ohm : +/- (4%+4dgt)
0-200.0M Ohm : +/- (4%+4dgt)
0-2.000 Ohm : +/- (3%+4dgt)
0-20.00 Ohm : +/- (2%+4dgt)
0-200.0 Ohm : +/- (2%+4dgt)
Test Current (DC) 2.000M Ohm to 200.0M Ohm : 1A+/-3%
200.0M Ohm to 20.0 Ohm : 100mA +/-2%
200.0 Ohm : 10mA +/-1.5%
Maximum Output Voltage (C1-C2) 10V
Power Source Rechargeable battery
Dimensions 330(L) x 260(W) x 160(D)mm
Weight Appox. 3.2kg (battery included)
Accessories Test leads, instruction manual, charger
特 點
● 使用微處理器系統控制設計。
● Z低可量測至1μΩ。
● Ω量測共有6個檔位可供選擇。
● 三重量測溫度過載保護。
● 可做四線式或兩線式量測。
● 使用大型的液晶顯示器,容易識讀。 ˙量測數位鎖定。
● 自動關機設計。
●省電量測設計。
● 符合歐洲安規驗証:

EN 61326-1

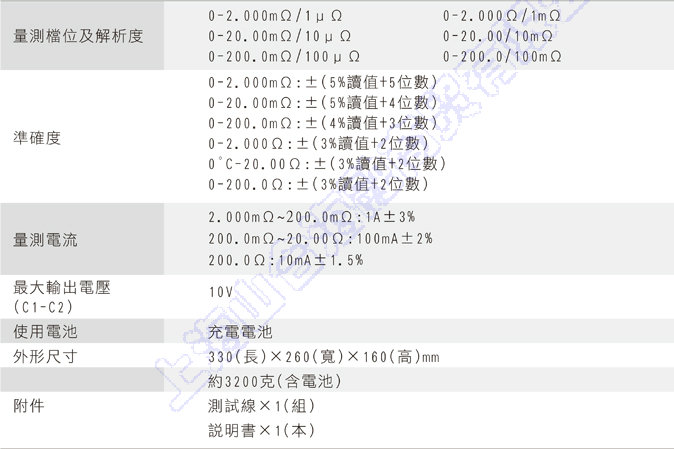

規 格 (23°C±5°C ＜80%R.H.)
