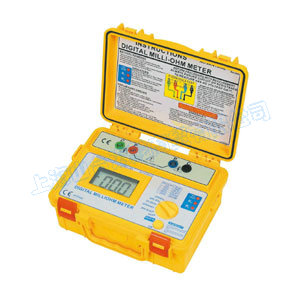

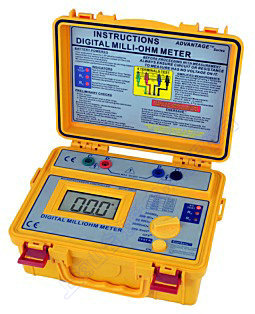

| 4137 mO Low Resistance Ohm Testers
|
 |
|
|
FEATURES |
| |
 Four terminal measurement. |
| Measures down to 100u Ohm. |
| 5 Ranges from 200.0M Ohm to 2000 Ohm. |
| Maximum resolutio of 100u Ohm. |
| Three test current with over-temperature protection. |
| Protection against inadvertent connection to over-voltage. |
| Large LCD. |
| Potential lead resistance, current lead resistance checks. |
| "Full-Featured" EnerSave (tm) indide. |
| EnerSave (tm) Auto-Hold. |
| EnerSave (tm) Auto-Off. |
| Lightwight, robust & compact. |
| Indicators show if reading may be invalid (Rp, Rc, and temperature). |
| "O-Ring" sealed case. |
| Future optional rechargeable battery. |
| , EN 61326-1, EN 61326-2-1, EN 61326-2-2, CISPR II, EN 61000-4-2, EN 61000-4-3 |
|
|
|
| SPECIFICATIONS |
| |
| Measuring Ranges |
0-200.0M Ohm in steps of 100u Ohm |
| |
0-2000M Ohm in steps of 1M Ohm |
| |
0-20.00 Ohm in steps of 10M Ohm |
| |
0-200.0 Ohm in steps of 100M Ohm |
| |
0-2000 Ohm in steps of 1 Ohm |
| Accuracy |
+/- 0.5% of reading +/- 2 digits over the operating temperature range, -15 degree C to +55 degree C with the supplied test leads |
| Test Current |
1mA => 2000 Ohm range |
| |
10mA => 200/20 Ohm ranges |
| |
100mA => 2000/200M Ohm ranges |
| Test Current Accuracy |
+/- 0.1% |
| Power Source |
12 VDC |
| Protection Fuses |
Mains = 0.5A, HBC, 5 x 20mm, DIN |
| |
Current = 0.5A, HBC, 5 x 20mm, DIN |
| |
Voltage = 0.5A, HBC, 5 x 20mm, DIN |
| Maximum Output Voltage (C1-C2) |
20V |
| Dimensions |
205(L) x 190(W) x 110(D)mm |
| Weight |
Appox. 1500g |
| Accessories |
Test leads |
| |
Shoulder belt (BET-2800) |
| |
Instruction manual, batteries 1.5V (AA) x 8 |
|
| 特 點 |
 ● 使用電池：12V直流電 (1.5V AA×8)
● 使用四個端點量測。
● Z低可量測至100uΩ
● 量測檔位從200.0mΩ到2000Ω共五檔。
● 過溫保護設計。
● 過壓保護設計。
● 使用寬廣型液晶顯示器,容易識讀。
● 電源耗電微小。
● 自動讀值鎖定設計。
● 自動關機。
● 通過歐洲安全規範驗証：
EN 61010-1 CAT Ⅳ 20V
EN 61326 -1 |
|

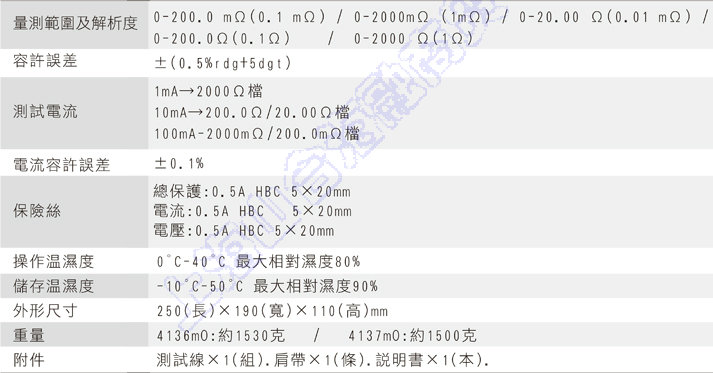

| 規 格 (23°C±5°C ＜80%R.H.) |
 |
|
| | |
