台湾标准电机SEW仪器仪表--4101 IN Insulation Testers Up To 1 kV Digital

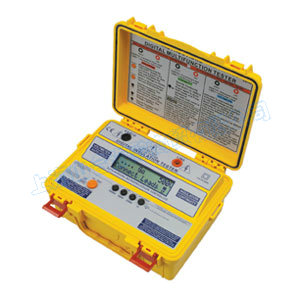

4101 IN Insulation Testers Up To 1 kV (Digital)
FEATURES
GENERAL :
Display: 2 lines x 16 characters LCD.
Auto-Null Threshold: 5 Ohm.
Buzzer Threshold: 3 Ohm.
Fast Test: 10 Sec.
Long Test: 60 Sec.
With PI and DAR Test Function: 10 Min.
Load Battery Test Current: About 300mA.
Power Source: 1.5V x 8 (Type AA).
Operating Temperature: 1 degree C to 55 degree C not in full sun
Storage Temperature: -20 degree C to 70 degree C
PROTECTION FEATURES:
Over Load: 700V (between all terminals).
Over Voltage: Class III 700V towards ground.
Fuse: 500mA (5 x 20mm), HBC, 600V fast blow.
This family (4101 IN and 4102 MF) of originally designed unique products have features ranging from insualtion resistance testing, voltage (AC-DC) measurements with automatic hold facility, continuity test with a short circuit current of minimum 200mA.
Two very unique features are found on the multifunction model 4102 MF; MOV and Gas Arrester Testing. Today most equipments and electrical installations are protected by MOVs and Gas arresters.
The 4102 MF can test these devices to establish if the devices are still operating correctly or not. Energy conservation is featured on all these new advanced products. EnerSave (tm) limits the test duration to about 10 seconds to save energy.
This new generation of test equipments have no moving parts. All calibrations are saved internally in a non volatile memory. Calibration can be done at any calibration facility around the world, without the need for dedicated calibration equipment.
This makes these products easier to maintain and lowers the cost of calibration and ownership. Their calibration interval can be extended without much problem.
They comply to all the latest regulation, including UK. This product family is part of our new world class series.
