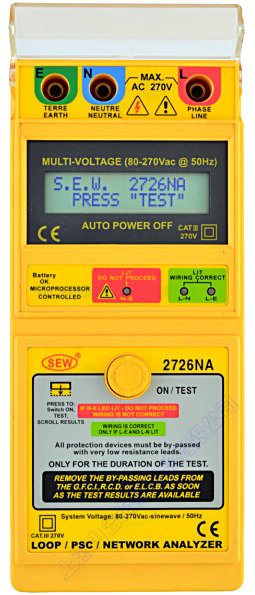

2726 NA   Loop Testers
2726 NA
FEATURES

 Built-in earth tester.
 Built-in loop/psc tester. 0.03 - 2000 Ohm (software ctrl).
 Built-in voltmeter.
 Built-in wiring checker.
 One push button smart control.
 Dispaly L-N and L-E voltages. 50 to 280 Vac (sine).
 Dispaly line path impedance. 0.01 - 2000 Ohm (software ctrl).
 Dispaly earth path impedance. 0.01 - 2000 Ohm (software ctrl).
 Dispaly neutral path impedance. 0.01 - 2000 Ohm (software ctrl).
 Display psc line to neutral. 6kA@230Vac supply.
 Display psc line to earth. 6kA@230Vac supply.
 Re-scroll trough previous results.
 Bat. ok /low battery indicator.
 Auto-off function.
 Color-coded test leads.
 Rugged Case.
 Ultra low power consumption.
  CAT III 270V
 The 2726 NA is the first portable real electrical network analyzer. It has a built-in earth tester which does not require the use of poles or long wires. This instrument is useful for fault-finding or commissioning of electrical installations. Differentiating between the Line (hot), Neutral and Earth (ground) path by reading their values has never been easier.
 Bad contacts, old wiring or bad earth path are quickly identified. Faulty electrical network can be resolved in a fraction of the time normally required using conventional equipment.
 Down time due to a faulty electrical network is minimal as the fault can be identified and diagnosed quickly. Find which wire needs to be attended to and why (find those old wires with high impedance before a fire starts and replace them). The complete electrical network can be analyzed by scrolling through the results. It has a built-in loop impedance and prospective short circuit tester as well as a voltmeter.
SPECIFICATIONS

Loop/Earth/Wires 0.03 - 2000 Ohm (auto-ranging)
Prospective Short Circuit 0 ~ 6kA at 230Vac
Operating Voltage 50V ~ 275Vac (50Hz)
Best Performance at Raged Voltage 230Vac +/- 20% Max. 10A
Accuracy of Voltage +/- 1% (210 ~ 250V), +/- 3% otherwise
Accuracy of Loops/Earth +/- 2% (0.05 ~ 50 Ohm)
Accuracy of Wires Impedances +/- 15% (above 500 Ohm)
Operating-Temperature-Humidity 0 degree C ~ 40 degree C 85% maximum
Dimensions 205(L) x 90(W) x 55(D)mm
Weight Appox. 570g (battery is included)
Power Source 1.5V SUM-3 (AA) x 6 or equivalent
Accessories Test leads (AL-34)
Heavy-duty case
Instruction manual
Batteries
特 點
● 微處理器控制設計。
● 只需操作一個按鍵，即可進行全部功能檢測。
● 內建接地量測。
● 內建迴路阻抗/預期短路電流量測。
● 內建電壓量測。
● 內建接線檢測。
● 可顯示L-N和L-E的電壓值。
● 可顯示不同迴路的阻抗值。
● 電源能量指示。
● 自動關機設計。
● 耗費電源微小。
● 符合 CATIV 300V
EN 61326-1
規 格 (23°C±5°C ＜80%R.H.)
迴路/接地/接線
阻抗量測範圍		 0.03-2000Ω
(自動換檔)
預期短路電流 0~6kA at 230 交流電壓
操作電壓 50-275V交流電壓(50Hz)
量測 條件 230Vac±20V Z大電流10A
電壓準確度 ±1%(210-250V)
其他:±3%
迴路/接地阻抗準確度 ±2%(0.05-50Ω)
接線阻抗準確度 ±15%
操作環境 0°C to 40°C
80% Maximum
外形尺寸 205(長)×90(寬)×55(高)mm
重量 約570g(含電池)
使用電池 1.5V(AA)×6(顆)
