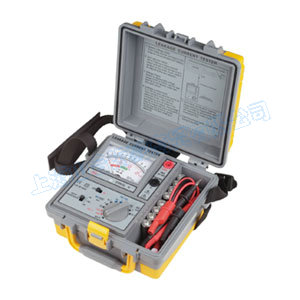

| 2108 EL AC/DC Leakage Meter
|
 |
|
|
FEATURES |
| |
 High quality Taut Band movement. |
| Four functions : DC current, AC current, AC+DC current and ACV measurement. |
| Three input resistance ranges : 1K Ohm, 1.5K Ohm and 2K Ohm. |
| 200uA full scale value. |
| +/-2.5% full scale value accuracy. |
| Built-in overload protection circuit. |
| Robust, compact and easy to carry. |
| Meets : CAT. III 600V, |
|
| The 2108 EL is a handy universal tester for checking electrical appliances. |
| It's used for: |
| Motor operated appliances : washing machine, electrical pump, lawn mower, refrigerator, electric drill, electric fan, vending machine. |
| Electrothermal appliances : toaster, electric stove, electric curling iron, hair dryer. |
| Electronic appliances : projector, duplicator and photographic enlarger. |
| Other appliances : portable generator, burglar alarm, medical and dental equipment. |
|
| SPECIFICATIONS |
| |
| RANGE |
|
| DC Current |
0.1-1-10 mA |
| AC Current |
0.1-1-10 mA |
| AC+DC Current |
0.1-1-10 mA |
| AC Voltage |
150 - 300V (50/60 Hz) |
| Accuracy |
+/- 2.5% of full scale value |
| INPUT IMPEDANCE |
|
| Current Ranges |
1K Ohm, 1.5K Ohm and 2K Ohm |
| Voltage Ranges |
150V/500K Ohm, 300V/1M Ohm |
| Working Frequency |
20 Hz ~ 5k Hz |
| Overload Protection |
With stands 30mA AC for 10 minutes for each current measuring rang |
| Operating Temperature |
0 degree C ~ 50 degree C |
| Operating Humidity |
Max. 80% R.H. |
| Dimensions |
210 (L) x 210 (W) x 100 (D) mm |
| Weight Approx. |
1395g (battery included) |
| Power Source |
1.5V (AA) x 8 or equivalent |
| Accessories |
Test leads (AL-25), Instruction Manual, Batteries |
|
|
| 特 點 |
● 使用高品質的吊線式防震表頭。
●具有四種量測功能：
1.交流(AC)漏電電流
2.直流(DC)漏電電流
3.交流(AC)+直流(DC)漏電電流。
4.交流電壓(ACV)
● 輸入內阻三種檔位:1kΩ/1.5kΩ/2kΩ ˙內建過載保護。
● 外盒堅固,方便收納。
● 量測電源大小設計。
● 符合安規：CATⅢ 600V |
|
| 規 格 (23°C±5°C ＜80%R.H.) |
 |
|
| |
