165 CB   Cable Tracer
All in One Multi-purpose Cable Tester and Cable Tracer

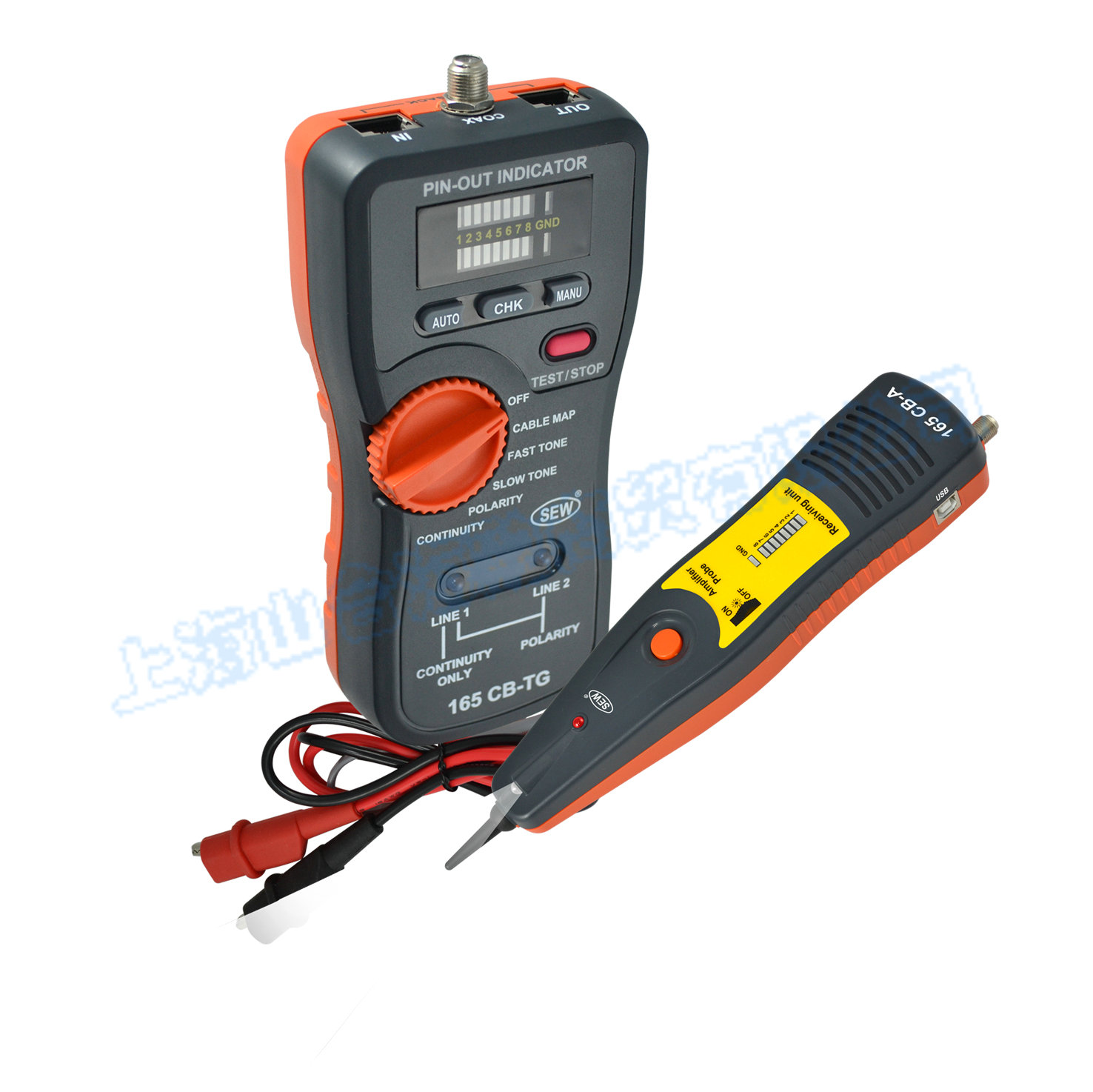

165 CB
FEATURES

 Multi-purpose Cable Tester
 165 CB is an ideal tool which can test the correct pin configuration for different kinds of cables.
 For testing : -RJ45/RJ11, -USB, -COAX, -BNC cable, -Multi-wire cable
 Auto-scan and manual-check function
 Buzzer sound warning for wire status
 2 LED module indicators on the master unit which can do both of transmitter and receiver functions for RJ45/RJ11 cable testing. Users don't need to use the receiving unit.
 165 CB provides a variety for checking cable continuity, open status, short status and miss-wired.
 Ground ( shielded ) wire test
 LED indication for wire status
 Power source : 9V battery
 Cable Tracer (Amplifier Probe)
 The Amplifier Probe is designed to identify and trace wires or cables within a group without damaging the insulation.
 The flashlight function for easier cable tracing in the dark.
 An LED indication for the signal strength
 Volume control for increased sensitivity and adjustable to suit work environment.
 Recessed ON/OFF button prevents battery drain.
 Works with any Tone Generator to identify wires.
 Power supply is in any 9V battery with a life of approximately 100 hours.
 A phone jack is designed for headset or handset.
 Cable Tracer (Tone Generator)
 Tone Generator is a great tool for locating and identifying cable pairs or individual conductors.
 Two bi-colored LEDs for Line1 and Line 2 indication of the polarities of the telephone lines.
 Identifying Tip and Ring of telephone lines
 Identifying telephone line condition : Clear line, Busy line and Ringing line.
 165 CB does not only serves as a tone generator, but it also serves as a continuity and polarity tester.
 Users can select a fast dual tone or a slow dual tone by the rotary switch.
 The unit has alligator type terminals, a modular cable of 4 conductors with a strong connector.
 The tone and continuity functions are only applied to Line1. (modular connector)
SPECIFICATIONS

Mater unit & Tone Generator(165 CB-TG)
Display LED Modules, Bi-colored LEDs
Waveform Square wave
Frequency 1kHz +/- 15%
Over Voltage Protection 80V DC
Single Tone ---
Alternating Tone Fast and slow
Connection RJ11 connector
Amplifier Probe & Receiving unit(165 CB-A)
Frequency Detection 1Hz~12kHz
Receiver Distance <50cm
Sensitivity Control V
Flash light V
LED for signal strength V
LED module V
General
Operating Temperature & Humidity 0 degree C ~ 40 degree C, 80% Max
Storage Temperature & Humidity -10 degree C ~ 50 degree C, 80% Max
Power Source 165 CB-A : 9V battery, 165 CB-TG : 9V battery
Dimensions 165 CB-A : 263(L) x 55(W) x 37.3(H)mm, 165 CB-TG : 180(L) x 82(W) x 43.8(H)mm
Weight 165 CB-A : 210g, 165 CB-TG : 280g
Safety Standard , , ,
Accessories Instruction manual, Batteries, Carry case, Self-test cable, BNC testing cables (optional), Multi-wire testing cables (optional)
特 點
多功能纜線測試器(165CB-TG上半部)
●165CB為可以測試不同纜線接腳與結構是否正確的理想工具。
●可測試多種不同型態的纜線:
(1)RJ45/RJ11 (2)USB
(3)COAX同軸電纜 (4)BNC纜線
●自動掃描和手動檢查功能設計。
●檢查纜線有開路狀況，以蜂鳴器响應警示。
●具有兩個LED模組，同時具有發射器和接收器的功能
，可以作RJ45/RJ11的測試，使用者不需使用到接收
器(165CB-A)，但其他型態的纜線測試，仍需搭配165CB-A使用。
●可以檢查多種不同型態，纜線的導通開路、短路以及錯接的狀況。
●提供接地線(Ground)的測試。
●以LED的模組來指示線路狀況。

音頻接收器(165CB-A)
●在不破壞纜線的絕緣層下，搭配音頻發射器，追縱纜線狀況。
●有手電筒照明功能，方便在黑暗中追蹤纜線。
●上半端設計有一顆LED，顯示訊號的強弱。
●有音量調整鈕，可以調整音量的大小，以適應工作環境。
●ON/OFF鍵設計，可防止電池耗電。
●設計有耳機或聽筒的插孔。
纜線追蹤音頻發射器(165CB-TG下半部)
●搭配音頻接收器(165CB-A)，可以分辨或追蹤纜線或集
團線中之一條，而不需要破壞纜線的外層絕緣體。
●具有導通測試和分辨電話線的極性。
●直接使用功能旋鈕，視工作環境的實際需要作音頻快速或緩慢的選擇。
●有兩顆双色LED，可以偵測LINE1和LINE2的電話線極性。
●設計有鱷魚夾和RJ11四蕊的接頭。
●導通測試只限LINE1來判別。
規 格
主機體與音頻發射器(165CB-TG)
顯示方法 LED模組
雙色 LED
波 形 方波
頻率範圍 1KHz±15%
過載保護 80V DC
音頻選擇 快速與緩慢
音頻接收器與訊號接收器(165CB-A)
頻率範圍 1Hz-12KHz
接收距離 < 50cm
音量大小調整 ˇ
照明功能 ˇ
LED訊號強度顯示 ˇ
LED模組 ˇ
一般敘述
操作溫濕度 0°C - 40°C 80%Z大相對濕度
儲存溫濕度 -10°C - 50°C 80%Z大相對濕度
使用電源 165CB-TG:9V(6F22)×1
165CB-A:9V(6F22)×1
外形尺寸 165CB-TG:180(長)×82(寬)×43.8(高)mm
165CB-A:263(長)×55(寬)×37.3(高)mm
重量(含電池) 165CB-TG:280g
165CB-A:210g
