现在位置:美国HDE产品首页→V-Watch个人高压防护报警器Next Gen Personal Voltage Detector

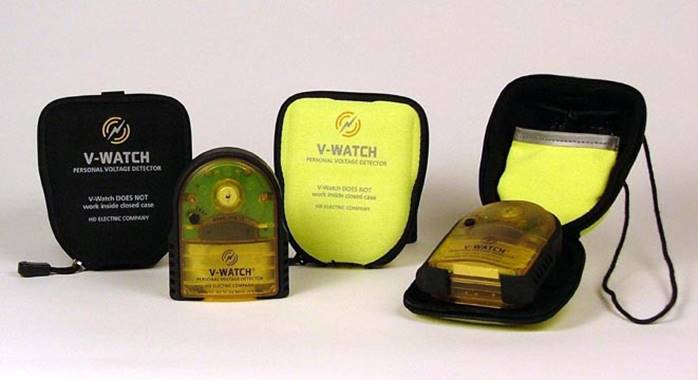

V-Watch with C-10 and C-10FR Case Lanyards

V-Watch Personal Voltage Detectors

Worn on the outside of your clothing at mid-torso, the V-Watch® Personal Voltage Detector provides that extra level of safety by detecting and alerting you to the presence of electrical fields or energized electrical equipment. In emergencies, you and your crews can move in safely to quickly restore power to your customers. The V-Watch is available in both a standard model and a pro model with a mute feature. Each comes in a tough nylon carrying case lanyard that is worn around the neck during use.

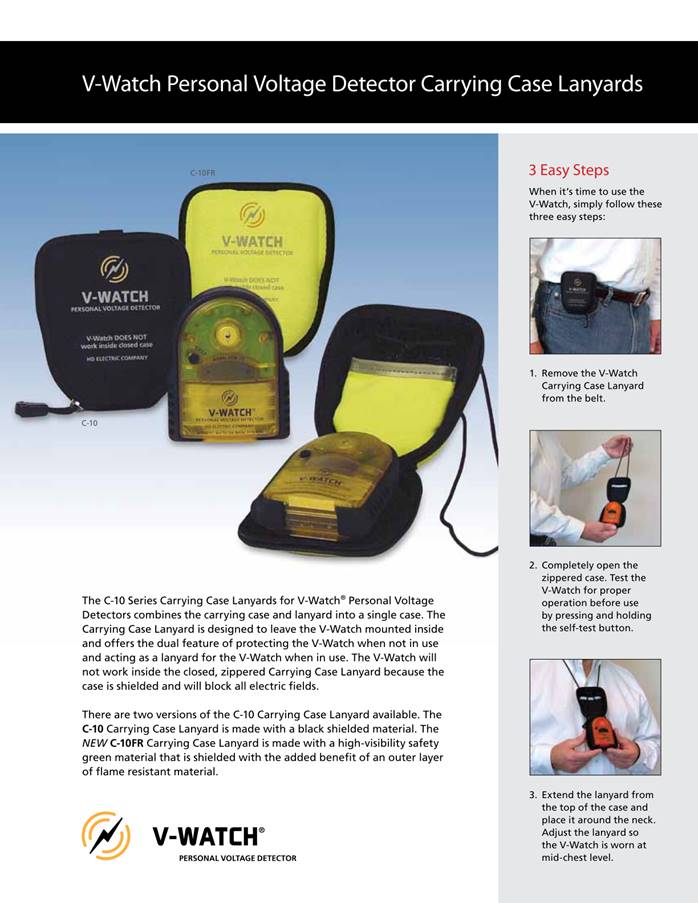

The C-10 Series Carrying Case Lanyards for V-Watch® Personal Voltage Detectors combines the carrying case and lanyard into a single case. The Carrying Case Lanyard is designed to leave the V-Watch mounted inside and offers the dual feature of protecting the V-Watch when not in use and acting as a lanyard for the V-Watch when in use. The V-Watch will not work inside the closed, zippered Carrying Case Lanyard because the case is shielded and will block all electric fields.

There are two versions of the C-10 Carrying Case Lanyard available. The C-10 Carrying Case Lanyard is made with a black shielded material. The NEW C-10FR Carrying Case Lanyard is made with a high-visibility safety green material that is shielded with the added benefit of an outer layer of flame resistant material.

V-Watch Personal Voltage Detector Instructional Video

Personal Voltage Detector Features

·         Alerts user to proximity of high voltage

·         Audible and visual alarms increase in frequency the closer the user gets to energized equipment

·         Typical V-Watch warning distance is about 7 feet (2.13m) from a 4kVAC conductor

·         Provides another level of safety for storm restoration workers and first responders

·         Low battery indicator

·         Field replaceable 9V battery

·         Rugged protective housing

·         Built-in self test

·         Lightweight

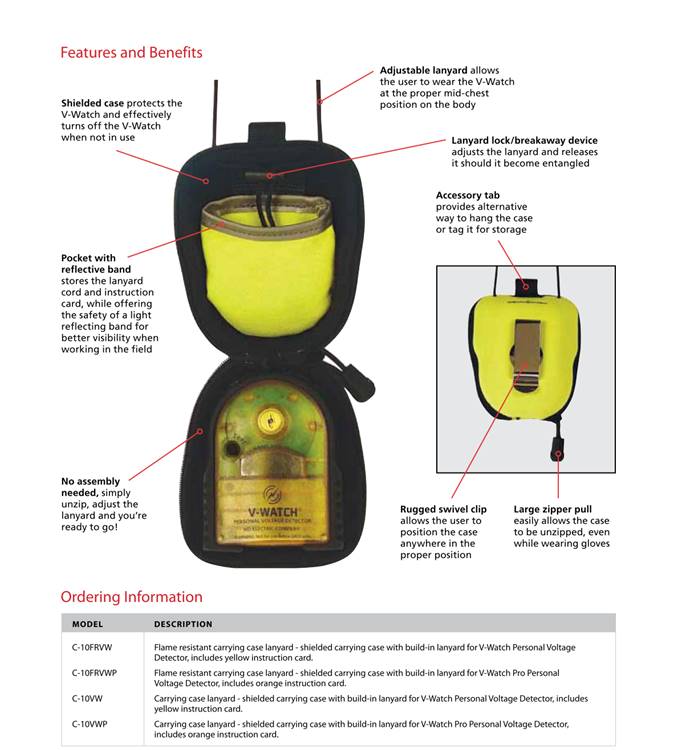

·         Carrying case lanyard

·         Two versions available - can be used with any V-Watch models, old or new

·         C-10FR carrying case lanyard - high-visibility safety green shielded material with an outer layer of flame resistant material

·         C-10 carrying case lanyard - black shielded material

·         Electrically shielded

·         Storage case when the V-Watch is not in use

·         Lanyard allows user to adjust to optimum mid-torso position

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

V-Watch 个人高压防护报警器
V-Watch是一款佩戴在作业人员胸前或作业背心上的个人电压防护报警器,通过侦测并提示作业人员电场或带电设备的方向和电场强度,作为作业人员额外的安全防护措施,避免作业人员误进入电场或接近带电设备。V-Watch提供两款报警模式可供选择,基本款的普通报
警模式以及高级款的可静音报警模式。任何一款V-Watch都放置在坚固耐用的尼龙罩壳中,便于运输和携带。同时,当作业人员不需要使用V-Watch时,直接合上尼龙罩壳即能立即关闭。V-Watch可以固定在尼龙罩壳中挂在颈部,也可以取出尼龙罩壳单独挂在作业背心或者工作服上。

产品特点:
警示作业人员远离高压电场或带电设备
声光报警随着与高压电场或带电设备的距离越近越急促
典型SC报警距离为2.4米(10KV)
电池低电量指示
易于更换的9V干电池
开机自检
坚固的外壳设计可适应野外作业需要
灵敏度:出厂设置感应阈值为50/60Hz
操作温度:-29°C ~ +49°C
电池:9V碱性干电池(使用寿命:存储2年/使用1年)
鸣响警示声音强度:100dB
重量:147克
外形尺寸:89 x 73 x 32 mm

电力系统电压

SC检测到电压的警示距离

10KV

8 ft (2.44米)

25KV

10 ft (3.05 米)

35KV

12 ft (3.66 米)

>=110KV

>15 ft (4.56 米)

?注:电压报警距离可定制

V-Watch Personal Voltage Detectors
V-Watch with C-10 Case Lanyard

V-Watch Personal Voltage Detectors
V-Watch with Lanyard (Optional)

V-Watch Personal Voltage Detectors
V-Watch worn on Fall Protection Gear

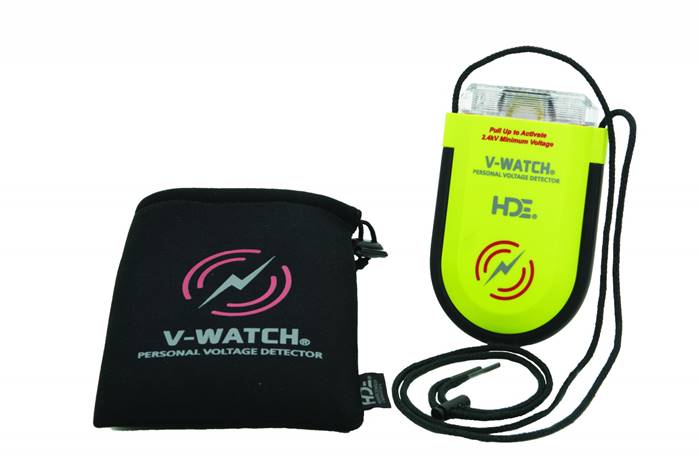

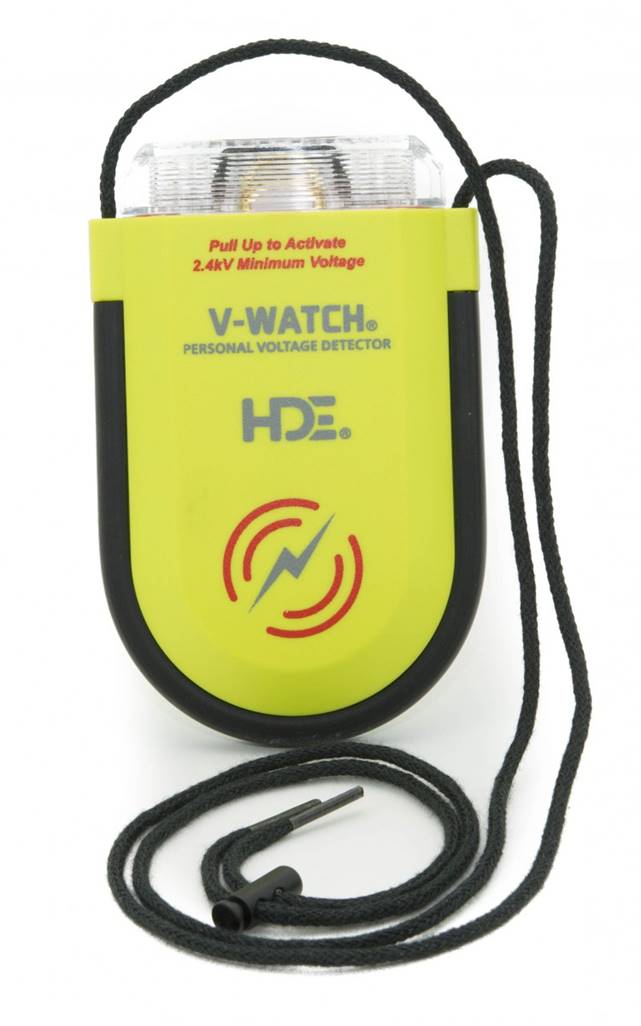

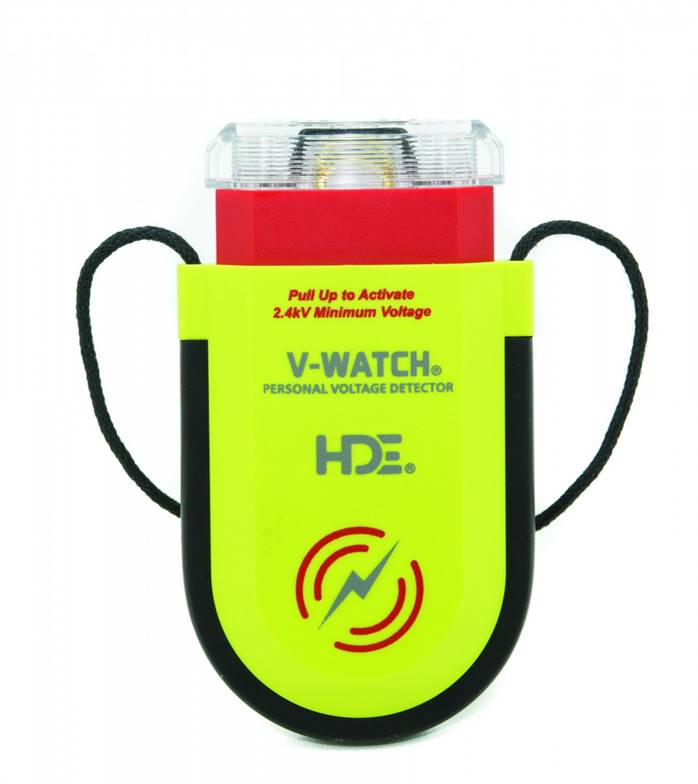

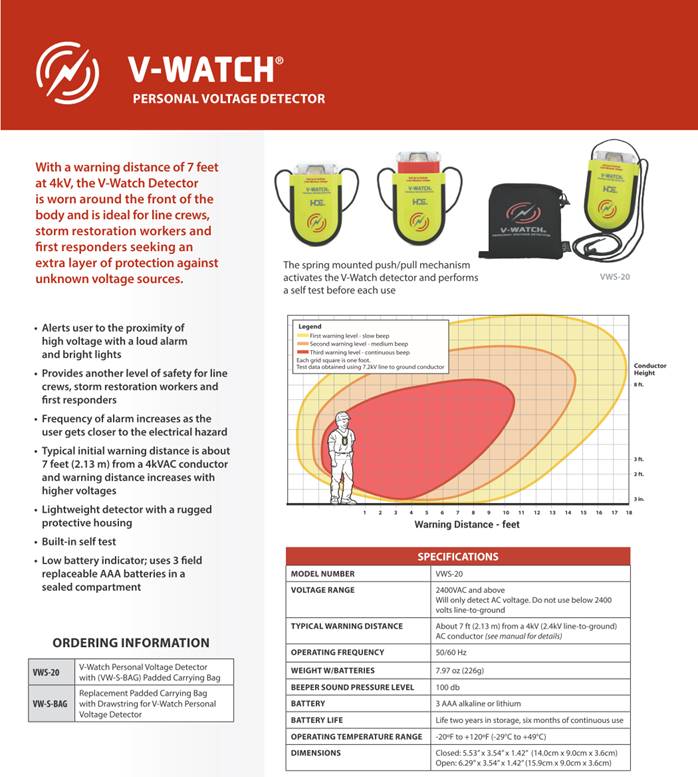

Next Generation V-Watch Personal Voltage Detector

The next generation V-Watch® Personal Voltage Detector provides  an extra level of safety by detecting and alerting you to the presence of electrical fields or energized electrical equipment.

The all new V-Watch Detector design features:

·         A loud alarm and bright flashing light that are both directed upwards toward the user for high awareness and visibility

·         A slim housing with built in lanyard, offering a compact and lightweight solution

·         Automatic self-test when the unit is activated for detection of voltage

·         Rugged design protects against environmental extremes such as water, dust and temperature

With a warning distance of 7 feet at 4kV, the V-Watch Detector is worn around the front of the body and is ideal for line crews, storm restoration workers and  first responders seeking an  extra layer of protection against unknown voltage sources.

Personal Voltage Detector Features

·         Alerts user to the proximity of high voltage with a loud alarm and bright lights

·         Provides another level of safety for line crews, storm restoration workers and first responders

·         Frequency of alarm increases as the user gets closer to the electrical hazard

·         Typical initial warning distance is about 7 feet (2.13 m) from a 4kVAC conductor and warning distance increases with higher voltages

·         Lightweight detector with a rugged protective housing

·         Built-in self test

·         Low battery indicator; uses 3 field replaceable AAA batteries in a sealed compartment

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

V-Watch 个人高压防护报警器
V-Watch是一款佩戴在作业人员胸前或作业背心上的个人电压防护报警器,通过侦测并提示作业人员电场或带电设备的方向和电场强度,作为作业人员额外的安全防护措施,避免作业人员误进入电场或接近带电设备。V-Watch提供两款报警模式可供选择,基本款的普通报
警模式以及高级款的可静音报警模式。任何一款V-Watch都放置在坚固耐用的尼龙罩壳中,便于运输和携带。同时,当作业人员不需要使用V-Watch时,直接合上尼龙罩壳即能立即关闭。V-Watch可以固定在尼龙罩壳中挂在颈部,也可以取出尼龙罩壳单独挂在作业背心或者工作服上。

产品特点:
警示作业人员远离高压电场或带电设备
声光报警随着与高压电场或带电设备的距离越近越急促
典型SC报警距离为2.4米(10KV)
电池低电量指示
易于更换的9V干电池
开机自检
坚固的外壳设计可适应野外作业需要
灵敏度:出厂设置感应阈值为50/60Hz
操作温度:-29°C ~ +49°C
电池:9V碱性干电池(使用寿命:存储2年/使用1年)
鸣响警示声音强度:100dB
重量:147克
外形尺寸:89 x 73 x 32 mm

电力系统电压

SC检测到电压的警示距离

10KV

8 ft (2.44米)

25KV

10 ft (3.05 米)

35KV

12 ft (3.66 米)

>=110KV

>15 ft (4.56 米)

?注:电压报警距离可定制
