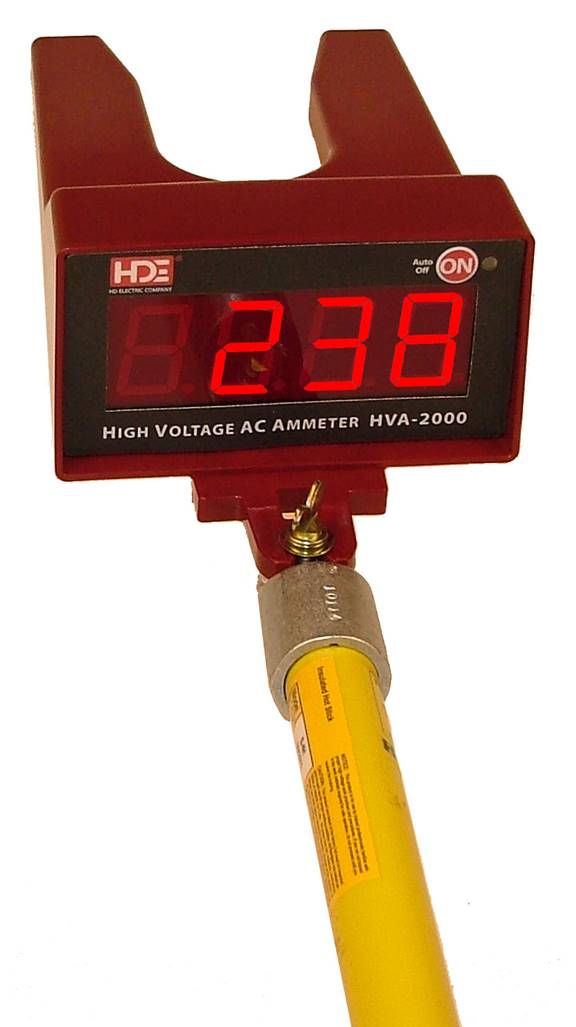

HVA-2000 High Voltage Digital Ammeter

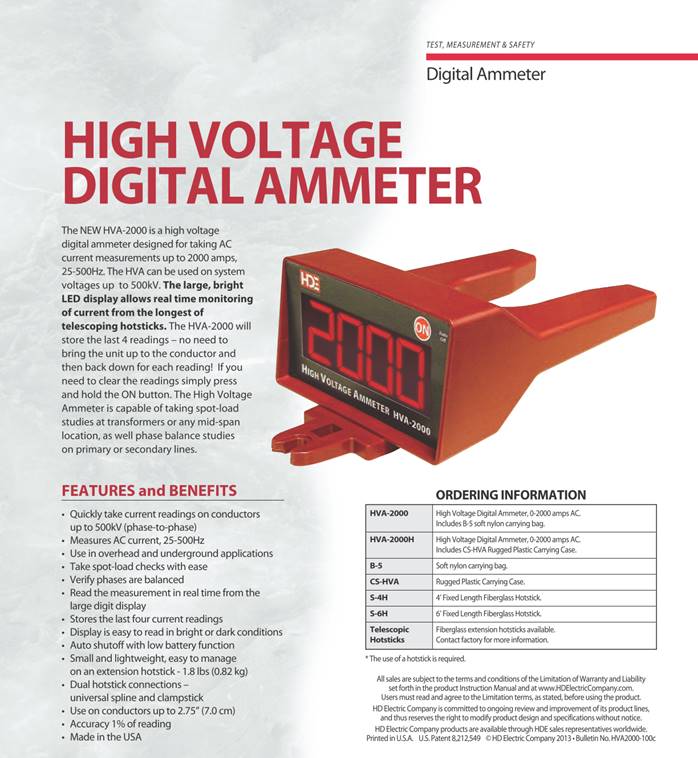

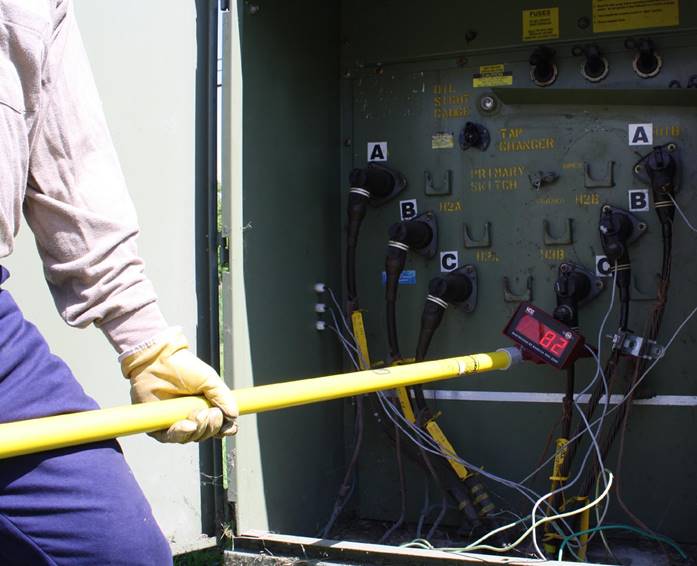

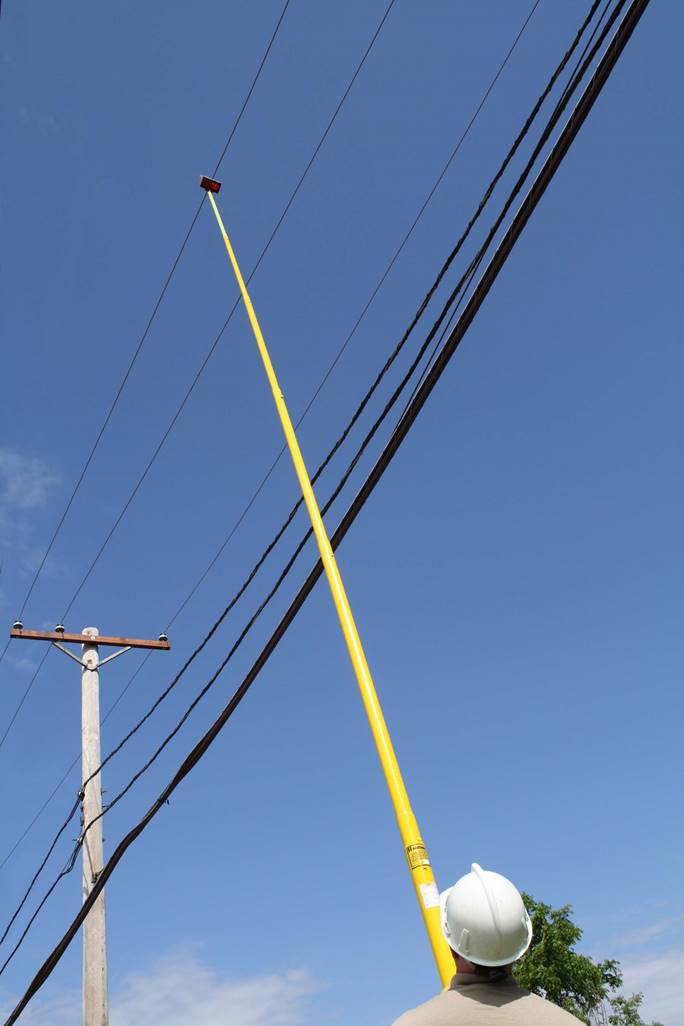

High Voltage Digital Ammeter The HVA-2000 is a high voltage digital ammeter designed for taking AC current measurements up to 2000 amps, 25-500Hz. The HVA can be used on system voltages up to 500kV. The large, bright LED display allows real time or peak current monitoring of current from the longest of telescoping hotsticks. The HVA-2000 will store the last 4 readings – no need to bring the unit up to the conductor and then back down for each reading! To clear the readings simply press and hold the ON button. The High Voltage Ammeter is capable of taking spot-load studies at transformers or any mid-span location, as well as phase balance studies on primary or secondary lines. High Voltage Digital Ammeter Features · Large, bright LED display – allows real time or peak current monitoring from the longest of telescoping hotsticks · Quickly take current readings on conductors up to 500kV (phase-to-phase) · Measures AC current up to 2000 amps, 25-500Hz · Storage of the last 4 readings – no need to bring the unit up to the conductor and then back down for each reading · Compact, Lightweight Design - 1.8 lbs (0.82 kg) · Dual hotstick connections – universal spline and shotgun stick · Conductor Capacity 2.75" (7.0 cm) · Accuracy 1% of reading HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice. HVA-2000大屏幕数显高压电流表 产品特点：
|
|
