Dual Display Phasing Voltmeter - DDPM-40

DoubleVision Dual Display Phasing Voltmeter

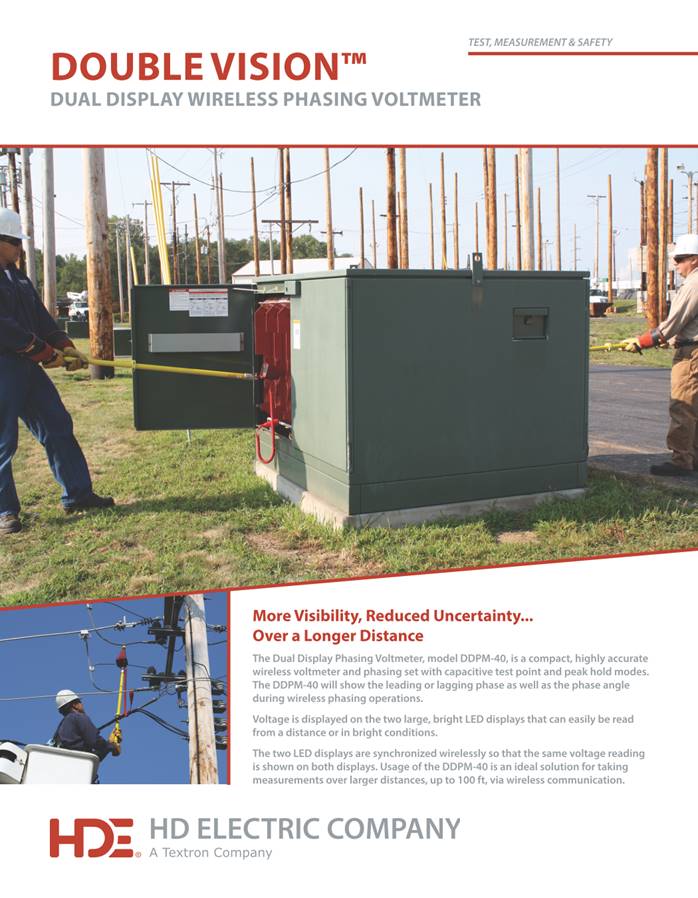

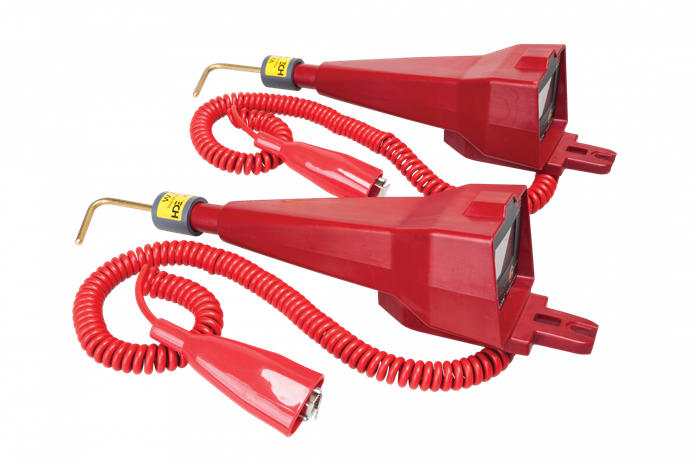

The Double Vision^® Dual Display Phasing Voltmeter, model DDPM-40, is a compact, highly accurate wireless voltmeter and phasing set with capacitive test point and peak hold modes. The DDPM-40 will show the leading or lagging phase as well as the phase angle during wireless phasing operations.  The DDPM-40 measures voltage from 5V to 43kV. The two sets can be used in both overhead and underground applications - accurate and repeatable to within 1%.

Voltage is displayed on the two large, bright LED displays that can easily be read from a distance or in bright conditions.

The two LED displays are synchronized wirelessly so that the same voltage reading is shown on both displays. Usage of the DDPM-40 is an ideal solution for taking measurements over larger distances, up to 100 ft, via wireless communication.

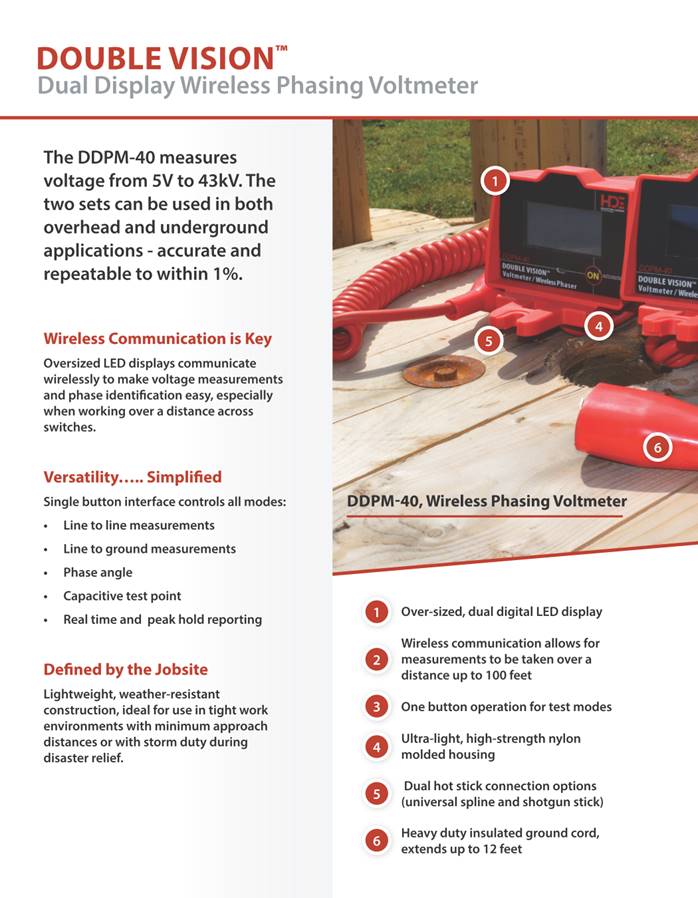

Wireless Communication is Key -  Oversized LED displays communicate wirelessly to make voltage measurements and phase identification easy, especially when working over a distance across switches.

Versatility . . . Simplified
Single button interface controls all modes:
• Line to line measurements
• Line to ground measurements
• Capacitive test point
• Phase angle
• Real time & peak hold reporting

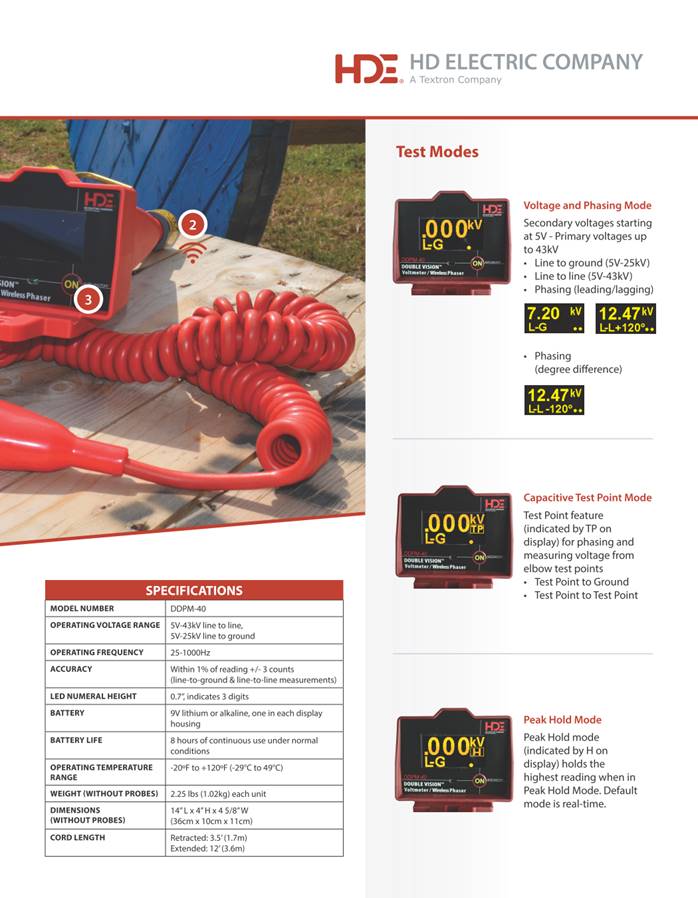

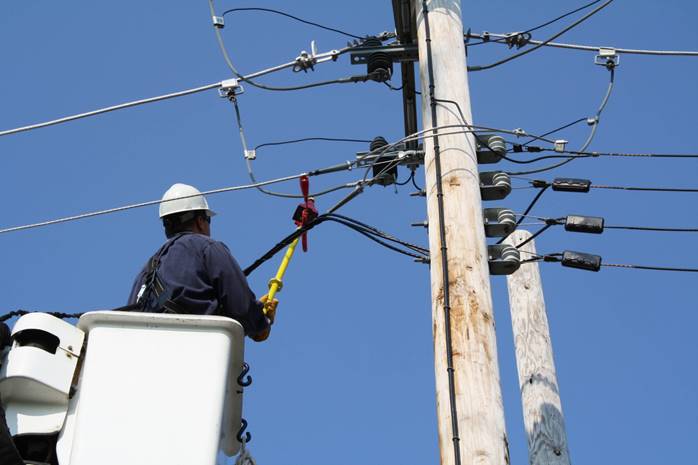

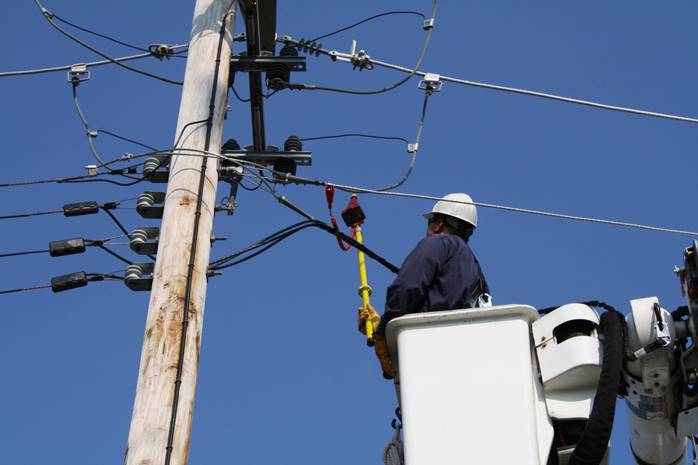

Defined by the Jobsite - Lightweight, weather-resistant construction, ideal for use in tight work environments with minimum approach distances or with storm duty during disaster relief.

Features and Benefits

·         Peak Hold mode

·         Capacitive Test Point mode

·         Oversized, dual digital LED display

·         Wireless communication allows for measurements to be taken over a distance up to 100 feet

·         One button operation for test modes

·         Ultra-light, high-strength molded housing

·         Dual hotstick connections - universal spline and shotgun stick

·         Highly accurate, within 1% of the reading

·         Dual battery monitor with auto shut off

·         Measures AC and DC voltages

·         Powered by two 9V lithium or alkaline batteries in an easy to change battery case - no tools required

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

DVM系列多功能核相仪
DVM系列多功能核相仪具有体积小巧，便于携带，测量
精度高，支持有线/无线核相等特点。设有电容测试点
模式，具有峰值保持功能。可测电压为5V-40KV。双探
头设计使产品既可用于架空线路测量，也可用于入地电
缆地面设备测量，同时BZ电压测量以及核相工作的稳
定和准确。
DVM系列包含以下产品型号：
DVM-80UVM便携型多功能核相仪
DDVM-40大屏幕多功能核相仪
DDPM-40大屏幕多功能无线核相仪
产品特点：
三位半数字显示
背光显示屏，强光或弱光环境下均可轻松读数
可测电压为40KV
电压测量精度为1%
适用于架空线路和入地电缆地面设备
可配合标准绝缘杆使用

DVM 系列多功能核相仪参数表

	DVM-80UVM	DDVM-40	DDPM-40
无线测量功能	无	无	有
相位角测量	无	无	有
适用电压范围	5V–40KV
电压测量频率	25–1000Hz
电压测量精度	1%±3 字读数
数据保持功能	有
自动关机功能	有
工作环境温度	-29°C-49°C
电池类型	9V 碱性电池 1 节	9V 碱性电池 2 节	9V 碱性电池 2 节
电池寿命	约 15 小时	约 8 小时	约 8 小时
数显尺寸	0.4”	0.7”
连接/接地线长度	延展Z长约 3 米	延展Z长约 3 米	延展Z长约 3 米
仪器重量	1.02kg	1.82kg	1.02kg（单个探头）

DVM 系列多功能核相仪选型指南

套装型号	套装详细配置
DVM-80UVM	DVM-80UVM(1)/025-OLPS-5(2)/CS-DVM(1)
DVM-80UVK	DVM-80UVM(1)/025-OLPS-5(2)/R-80(2)/ASP-15/25(2)/CFT-35(1)/ PT-5000B(1)/HAS-2500(2)/B-12(1)
DVM-80UVM	(1)/025-OLPS-5(2)/R-80(2)/ASP-15/25(2)/CFT-35(1)/
DDVM-40	DDVM-40(1)/025-OLPS-5(2)/CS-DDVM(1)
DDVM-40/K01	DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/CS-DDVM(1)
DDVM-40/K02	DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CS-DDVM(1)
DDVM-40/K03	DDVM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CFT-35(1)/CS-DDVM(1)
DDPM-40	DDPM-40(1)/025-OLPS-5(2)/CS-DDVM(1)
DDPM-40/K01	DDPM-40(1)/025-OLPS-5(2)/PT-5000B(1)/CS-DDVM(1)
DDPM-40/K02	DDPM-40(1)/025-OLPS-5(2)/PT-5000B(1)/ASP-15/25(2)/CS-DDVM(1)

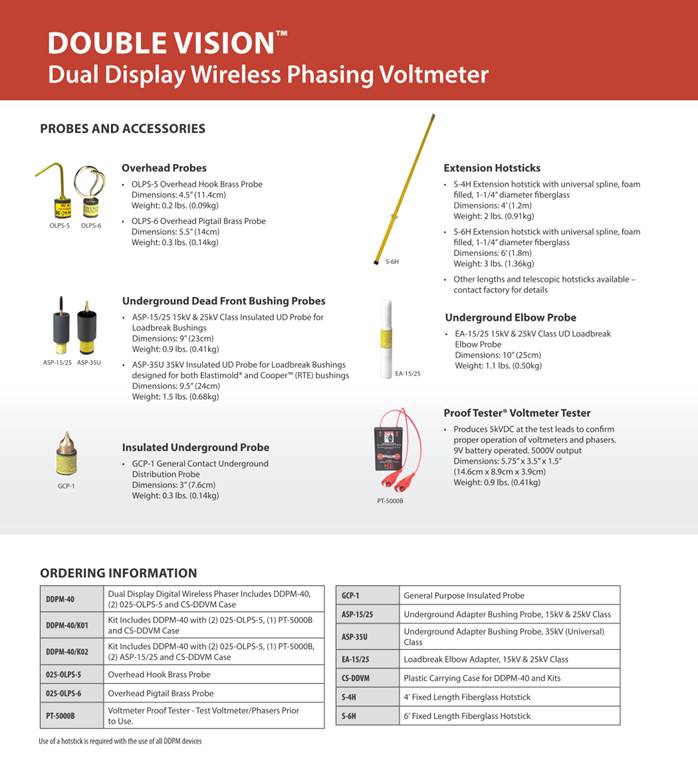

DVM系列多功能核相仪配件
