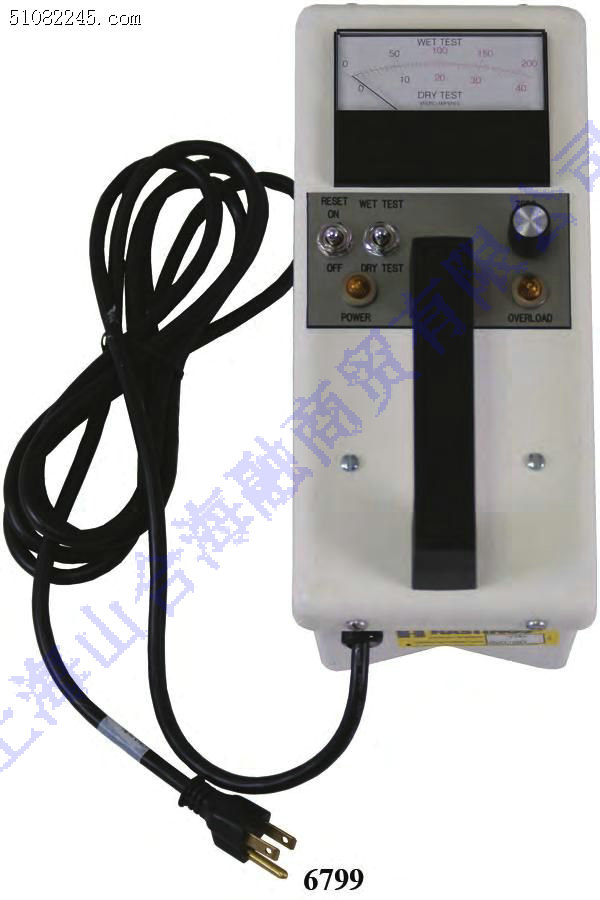

HOT STICK TESTER
• Test hot sticks wet or dry. The tester has a selector switch
for wet or dry tests and a dual range scale which gives the
operator leakage current values in micro amps.
• Utilizing a 2,500 volt output, the meter is calibrated to in-
dicate the leakage values that would be present if 75KVAC
were applied to a 12” section of the fiberglass tool for the
wet test and 100KVAC per foot for the dry test.
• Portable and lightweight for easy use. Two models avail-
able 120 volt or 220 volt systems. The tester is designed to
protect the operator while in use.
• The tester comes complete with a padded carrying case and
directions for proper use. A testing bar is also provided to
ensure the tester is working properly.
• Application and training video included with purchase.
| CAT NO |
DESCRIPTION |
LBS |
| 6799 |
HOT STICK TESTER COMPLETE WITH CARRYING CASE AND TEST BAR OPERATES ON 120 VOLT SYSTEM |
5.3 |
| 6781 |
HOT STICK TESTER COMPLETE WITH CARRYING CASE AND TEST BAR OPERATES ON 220 VOLT SYSTEMS |
8.2 |

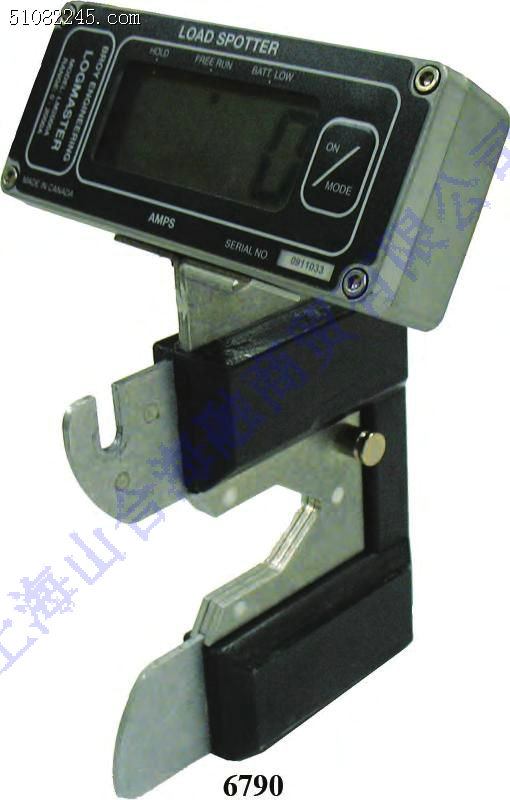

AMMETER
• Designed for use with universal hot sticks.
• Large digital display, numbers are 1” high and 1/2” wide, can
be seen 30’ to 40’ away. Has lighted background for night use.
• For use on low voltage and high voltage lines (tested to
345KV).
• The hold feature captures current readings when applied with
telescoping hot sticks from distances.
• 0 - 2000 amp range
• Large digital display, numbers are 1” high and 1/2” wide
• Displays either Hold or Free Run readings
• Accuracy is ± 1%
• Wide temperature operation -4°F to 104°F (-20°C to 40°C)
• Snap in and out adapter enables the ammeter to be used on
conductors up to 2” O.D.
• Low battery indicator
• Weather proof aluminum housing
| CAT NO |
DESCRIPTION |
LBS |
| 6790 |
AMMETER COMPLETE WITH PADDED CASE |
2.4 |
