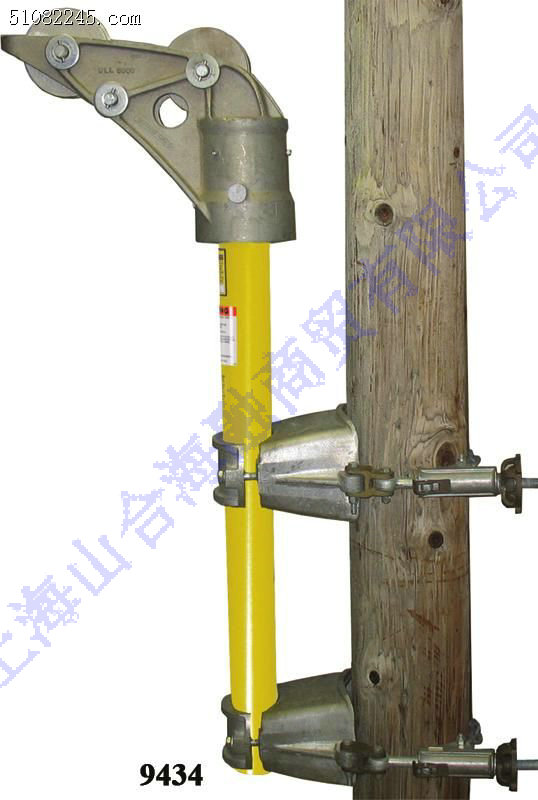

HEAVY DUTY INSULATED GIN WITH SWIVEL SHEAVE HEAD
•  Unit can be installed in two sections for easy installation
•  Swivel head rotates and locks at 45° intervals
•  Swivel head, sheaves and saddles are made from high strength aluminum alloy
•  Head can be swivelled with transformer load
•  Nylon straps should be inspected prior to each use for wear, cuts, and degradation from exposure to ultra
violet rays.  Suspect straps should be replaced before use.

CAT NO

“A”

“B”

“C”

WORKING LOAD

LIMIT

(SEE PAGE 811)

LBS

9434

36”

20”

45”

3800 LBS

49.0

5800-7

SAME AS 9434 EXCEPT WITH RATCHET AND STRAP

47.0

12393

48”              34”            57”           3800 LBS

52.0

5800-8

SAME AS 12393 EXCEPT WITH RATCHET AND STRAP

50.0

5049

REPLACEMENT NYLON STRAP - 2” WIDE X 44” LONG - WITH HOOK

0.8

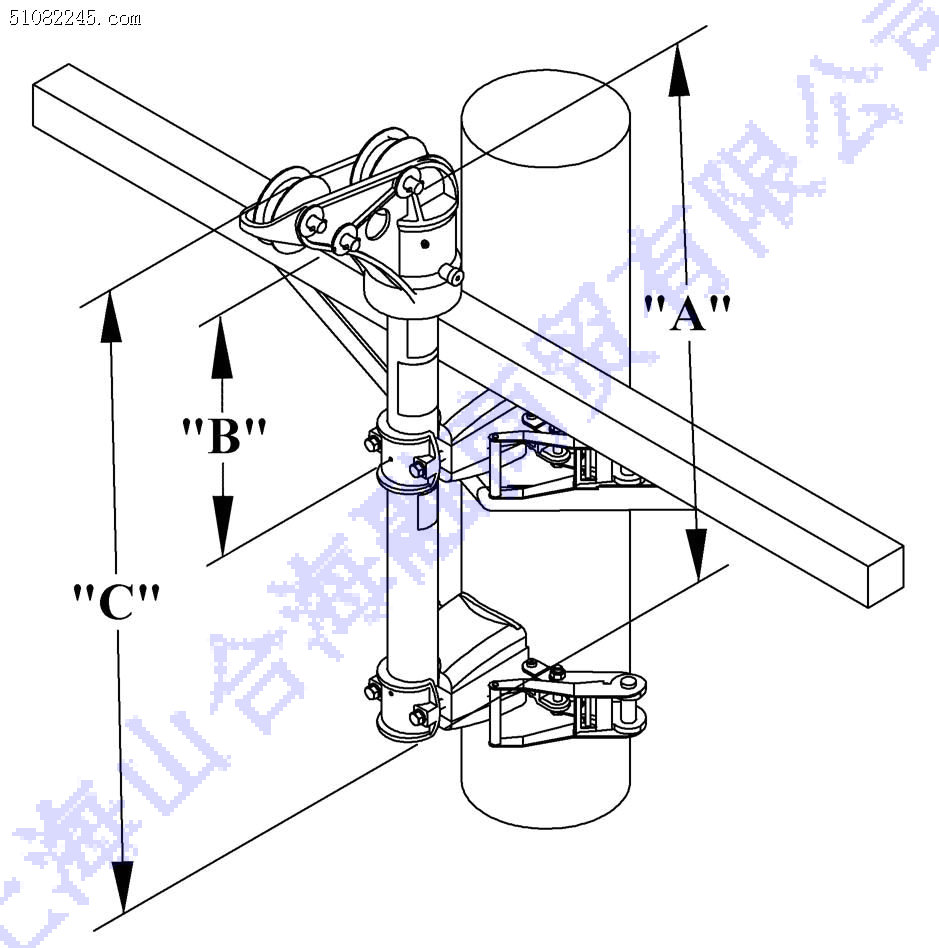

DIMENSIONAL REFERENCE:

LOAD LINE IS 12” FROM FALL LINE

FALL LINE IS 5 1/2” FROM FACE OF POLE

















CROSS ARM GIN
•  Rope blocks can be installed in lower ring before
installing gin
•  Shotgun engages long eye to hang gin on arm while
lineman is in safe position below
•  Made of bronze alloy
•  Working load limit 1,000 lbs.

•  Fits arms up to 3 1/2” wide

CAT NO DESCRIPTION LBS
5742-23 CROSS ARM GIN 2.2



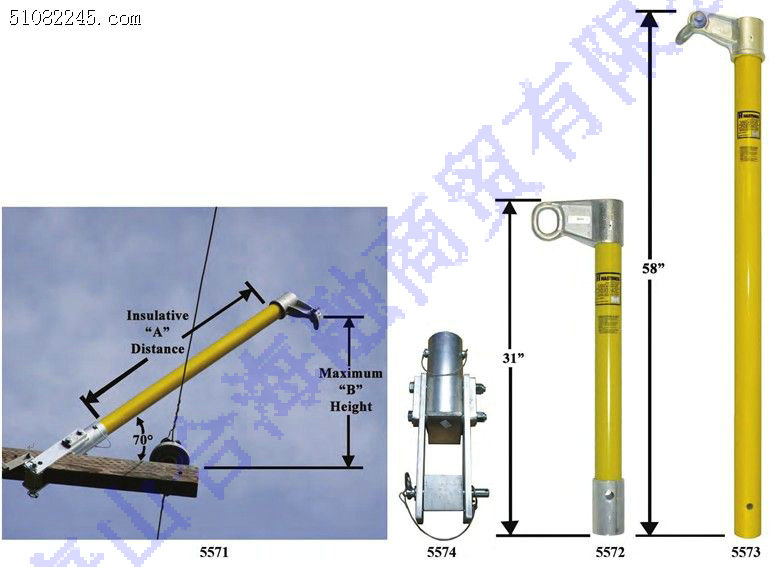

CONVERTIBLE CROSS ARM GIN
•  Base assembly will accept either the 2 1/2” O.D. x 31” long mast or 3” O.D. x 58” long mast.
This feature allows operating personnel maximum lifting heights and safe working load limits.
•  Base assembly is constructed with aluminum alloy parts and base plates are reversible to allow
gin to be used on 3 1/2” wide x 4 1/2” high or 4 3/4” wide x 5 3/4” high cross arms.
•  Aluminum plate support on base prevents damage to cross arms in load bearing areas.

CAT NO

DESCRIPTION

DIMENSION

WORKING

LBS





“A”

“B”

(SEE PAGE 811)



5570

COMPLETE GIN ASSEMBLY

WITH ITEM 5574 BASE AND ITEM 5572 MAST

21 3/4”

28 1/4”

600 LBS

17.2

5571

COMPLETE GIN ASSEMBLY

WITH ITEM 5574 BASE AND ITEM 5573 MAST

48 3/4”

54”

800 LBS

27.0

5574

CONVERTIBLE BASE ASSEMBLY ONLY







11.8

5572

2 1/2” O.D. X 31” LONG MAST ONLY

21 3/4”



600 LBS

5.4

5573

3” O.D. X 58” LONG MAST ONLY

48 3/4”



800 LBS

15.2
