MULTI-PURPOSE HOLDING TOOL
For holding slack conductors during sleeving. Provides positive control for shaping and bending jumpers
and controlling conductors when cutting.
FEATURES AND BENEFITS:
• Excellent means of applying factory formed tie wires, armor rods, and securing captured hardware
during crimping operation
• Main fiberglass portion is 1” diameter
• The 5/8” operating rod is designed to withstand high torque values
• Foam filled to completely eliminate migration of contaminates and moisture
RIGID HEAD
CAT NO |
LENGTH |
CONDUCTOR CAPACITY |
LBS |
CASE |
4600 |
4’ |
#6 to 1 1/16” |
3.3 |
C-8104 |
4601 |
6’ |
#6 to 1 1/16” |
3.8 |
C-8106 |
4602 |
8’ |
#6 to 1 1/16” |
4.3 |
C-8108 |
ADJUSTABLE HEAD
CAT NO |
LENGTH |
CONDUCTOR CAPACITY |
LBS |
CASE |
4603 |
4’ |
#6 to 1 1/16” |
4.0 |
C-8104 |
4604 |
6’ |
#6 to 1 1/16” |
4.5 |
C-8106 |
4605 |
8’ |
#6 to 1 1/16” |
5.0 |
C-8108 |

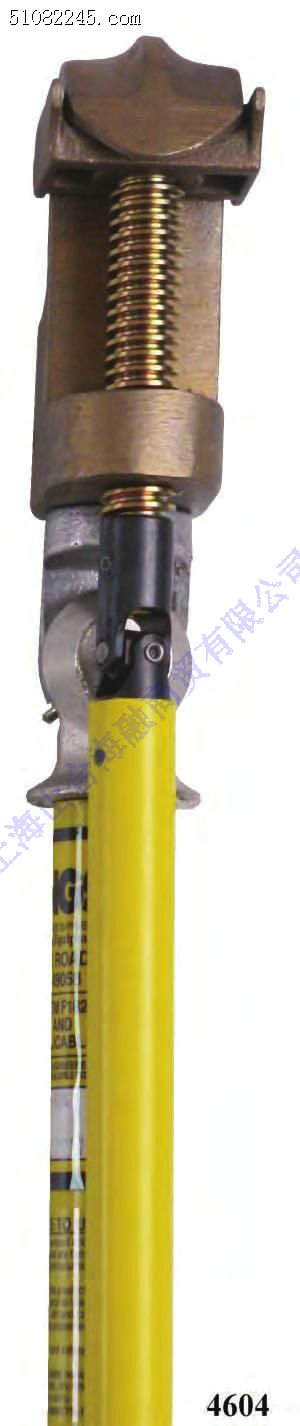

ADJUSTABLE HEAD
All of the same features of the rigid head plus the conven-
ience of adjustment from straight to 30 degrees both sides of
center. This gives the lineman better control options from
multiple positions. A universal joint on the operating rod
allows smooth, effortless control of the gripping pressure.
Angle adjustments are obtained easily by means of a spring
loaded thumb screw.
