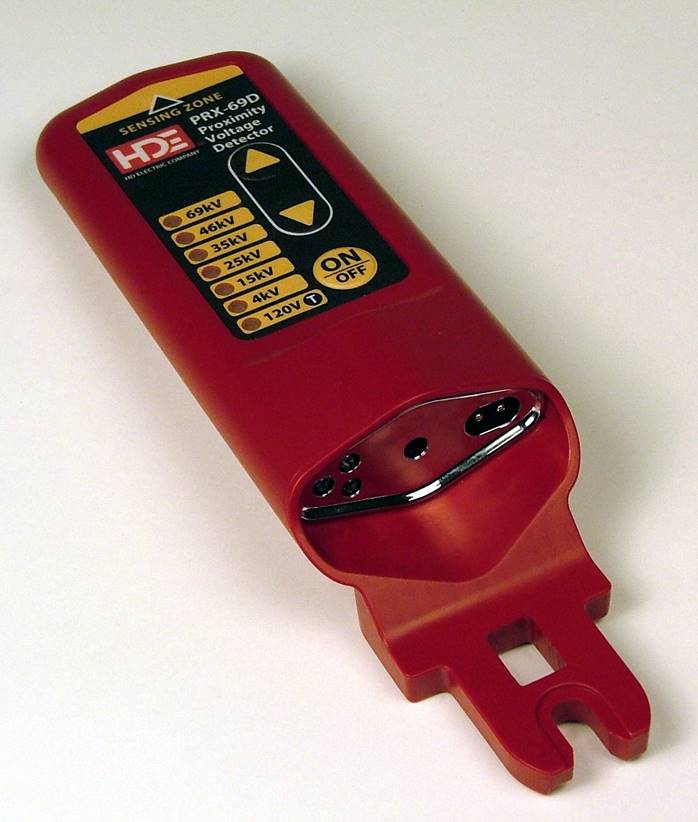

PRX-69D Proximity Voltage Detector

Proximity Voltage Detector

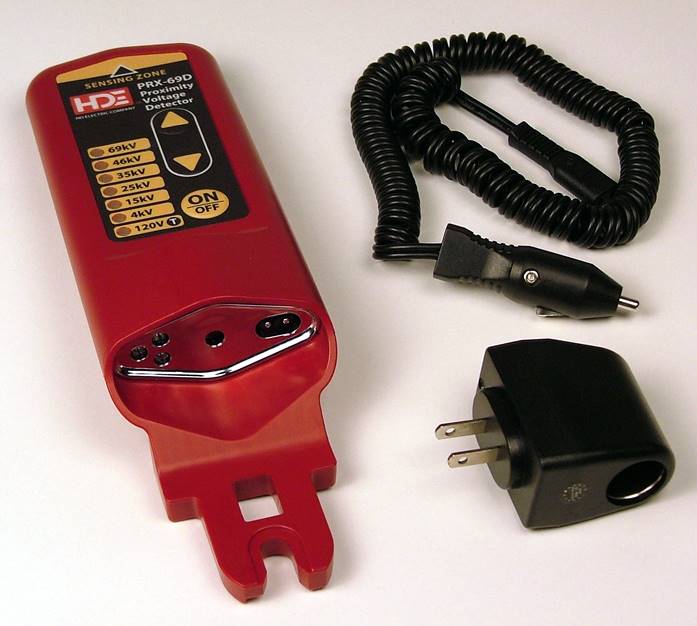

The PRX-69D Proximity Voltage Detector is a non-contact detector with seven standard voltage ranges from 120V to 69kV.  When voltage is detected, the PRX-69D gives an audible and visual indication with a typical detection distance of 10 inches.  The PRX has the ability to detect voltage on most elbow test points at the 120V setting. With a rechargeable internal battery, the PRX can be charged quickly from 12VDC automotive outlets or from 115-240VAC.

The rechargeable battery sealed inside the PRX-69D is a lithium-ion type, the same battery typically used in smart phones and other portable electronics.  It is however, substantially larger in capacity resulting in much longer life for the PRX. Internal circuitry prevents overcharging and protects the battery from excessive temperatures.  The battery is sealed inside the device, providing maximum protection. Other key features of the PRX battery system are:

·         If the battery is low, a quick 15 minute charge provides over one full day of use

·         PRX battery life on a full charge is one week of continuous use

·         A full charge takes only three hours

Proximity Voltage Detector Features

·         Seven standard voltage ranges from 120V up to 69kV

·         Detects voltage on most elbow test points

·         Detects voltages 10" (25 cm) or greater from the source

·         Rechargeable battery with quick recharge - 15 minutes for a full day of use

·         Heartbeat signal assures that the PRX is ready to detect voltage

·         Rugged, durable housing

·         Dual hotstick connections - universal spline and shotgun stick

·         Loud beeper and LED lights indicate voltage

·         Weighs less than 1 pound (0.45 kg)

·         Easy to use electronic touch pad with large buttons

·         Custom voltage ranges available upon request

·         Can be used on 50Hz and 60Hz systems

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.

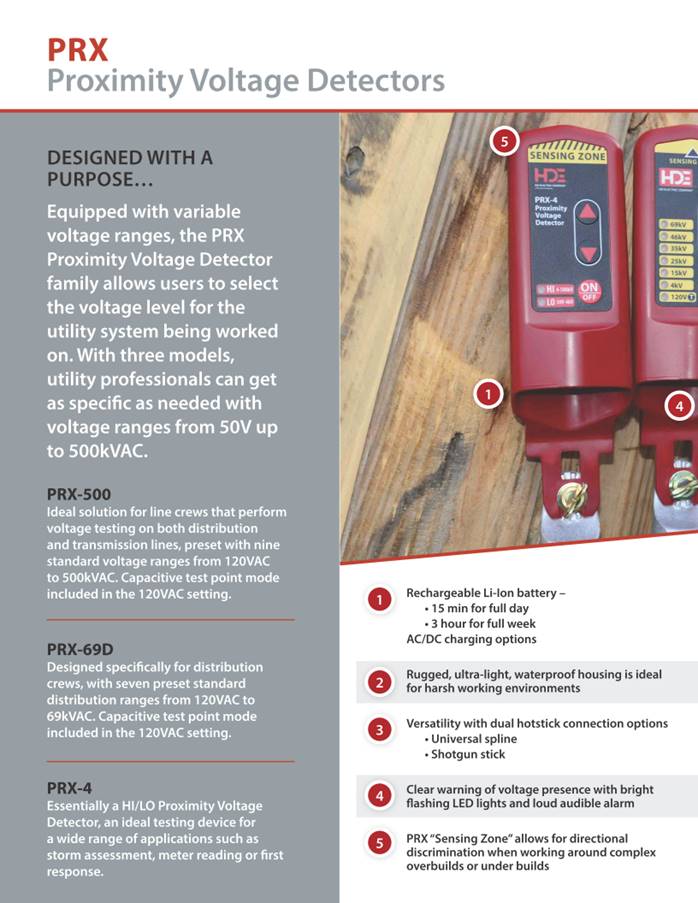

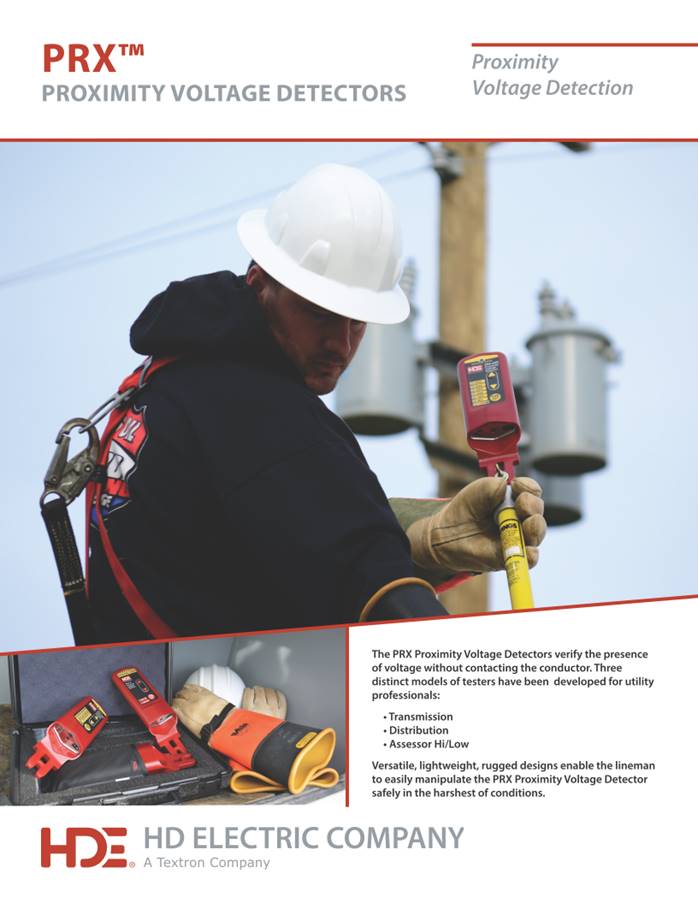

PRX系列非接触式验电器
PRX系列非接触式验电器体积轻巧,便于携带。无需接触带电导体即可达到验电功能,在现场作业尤其是需要连接长距离绝缘杆时,便于作业人员轻松作业。同时,每款PRX产品均有若干个电压量程,可以由用户自行选择需要检验的电压。该系列验电器 安全性能,电气性能以及验电功能均符合国家相关标准。

PRX系列包含以下型号:
PRX-500(Z高量程500KV)
PRX-69D(Z高量程69KV)
PRX-35D(Z高量程35KV)
PRX-4(4KV以下和4KV以上,自动量程)

产品特点:
多量程电压选择
声光报警指示电压
可用于50/60Hz电力系统
快速充电,充电15分钟BZ一天使用
可通过市电或车载电源充电
可配合标准绝缘杆使用

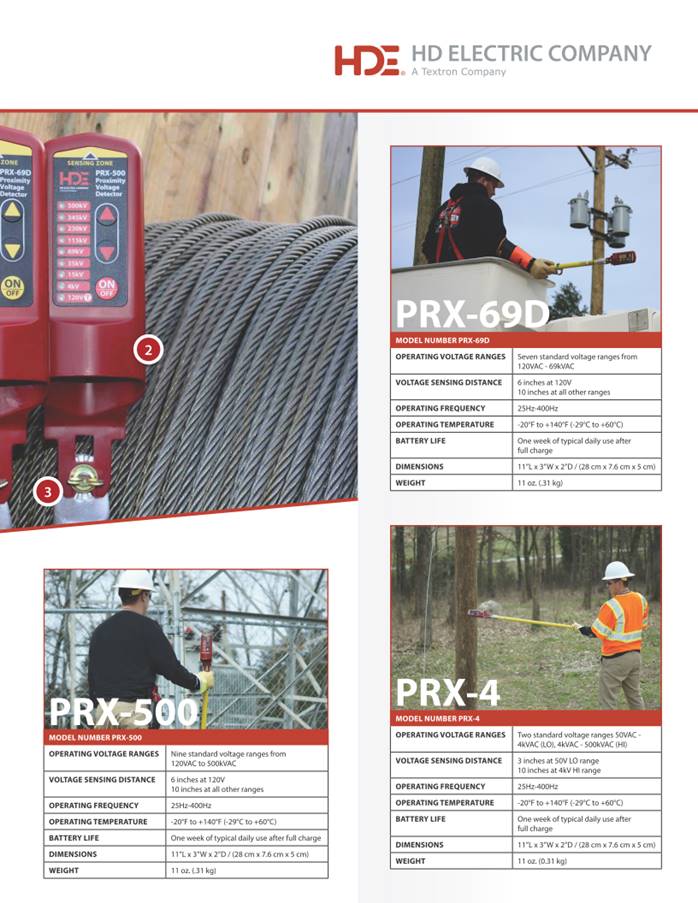

PRX非接触式验电器参数表



PRX-500

PRX-35D

PRX-4

PRX-69D

电压量程

220(380)V/10KV/35KV/110KV/ 220KV/330KV/500KV

220(380)V/10KV/35KV

50-4KV/4KV 以上

120V/4KV/15KV/25 KV /35 KV /46 KV /69 KV

自动量程

报警距离

25cm(典型值,4KV 以上电压)

电池使用寿命

验电>200 次(满电),电池充满时间 3 小时

重量

<0.45kg

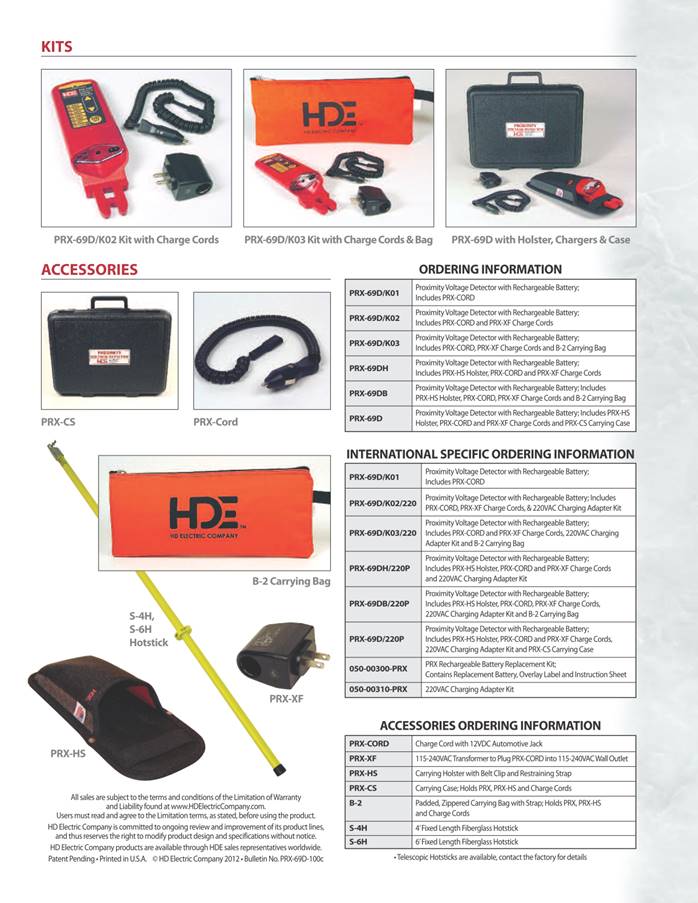

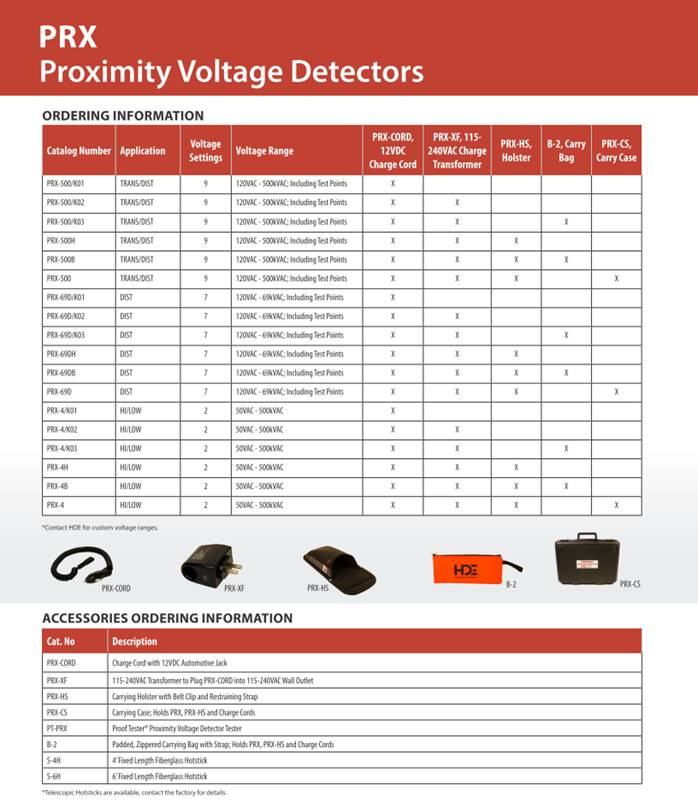

PRX非接触式验电器选型表

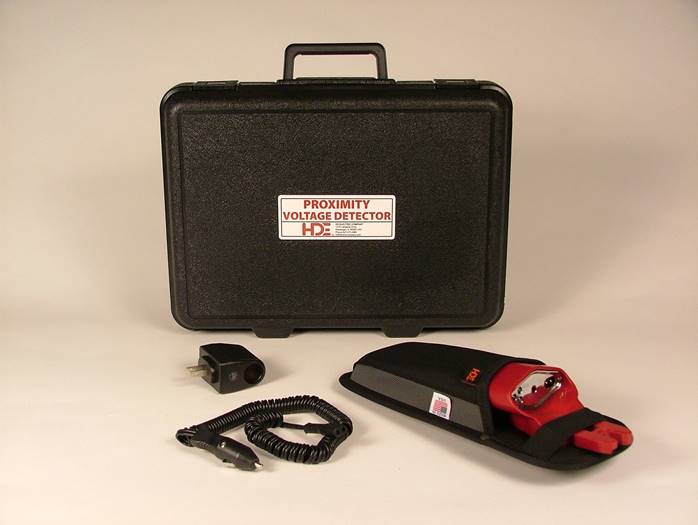

套装型号

套装详细配置

PRX-500/220P?

PRX-500(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1)

PRX-69D/220P

PRX-69D(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1)

PRX-35D/220P

PRX-35(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1)

PRX-4/220P

PRX-4(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1)
