Single Stick Digital Voltmeter - SVM-25

Single Stick Digital Voltmeter

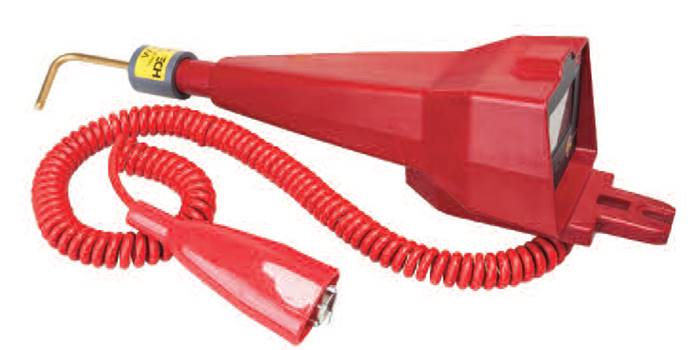

The Single Stick Digital Voltmeter, model SVM-25, is a compact, high accuracy digital voltmeter with capacitive test point mode and peak hold.  Voltage is displayed on the large, bright LED display that can easily be read from a distance or in bright conditions.

The SVM-25 measures voltage from 5V to 25kV.  It can be used in both overhead and underground applications – accurate & repeatable to within 1%.

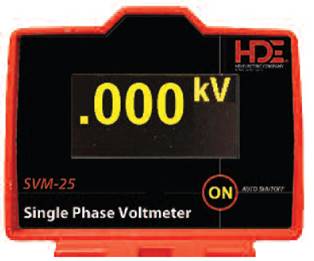

Oversized, bright LED read out makes voltage measurements easy to read from a distance or in low light conditions.

Versatility . . . Simplified
Single button interface controls all modes:
• Line to ground measurements
• Capacitive test point
• Real time & peak hold reporting

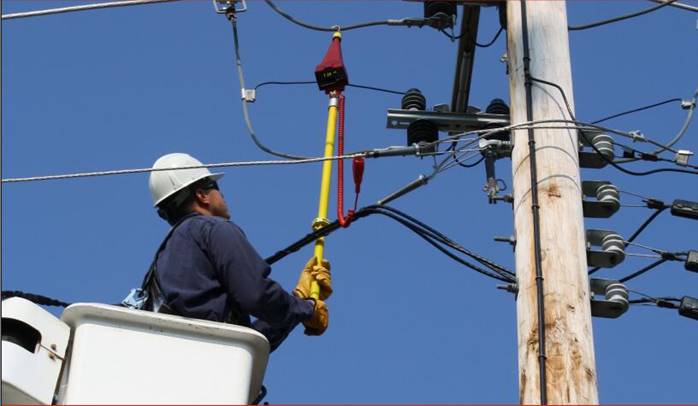

Defined by the Jobsite - Lightweight, weather-resistant construction, ideal for use in tight work environments with minimum approach distances or with storm duty during disaster relief.

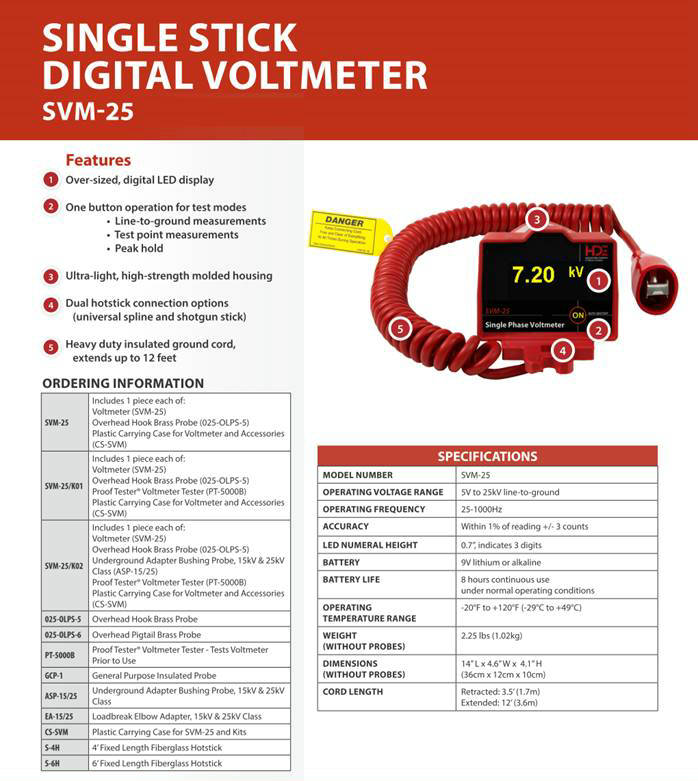

Features and Benefits

·         Peak Hold mode

·         Capacitive Test Point mode

·         Oversized digital LED display

·         One button operation for test modes

·         Ultra-light, high-strength molded housing

·         Dual hotstick connections - universal spline and shotgun stick

·         Highly accurate, within 1% of the reading

·         Battery monitor with auto shut off

·         Measures AC and DC voltages

·         Powered by a 9V lithium or alkaline battery in an easy to change battery case - no tools required

HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
