TRUCK GROUNDING REEL (SPRING RETRACTABLE)
?nbsp; Two models available to ensure adequate cable lengths to meet truck grounding requirements small or
large.
?nbsp; Compact design grounding reels provide an efficient and positive means to ground trucks working on or
near energized lines.
?nbsp; Grounding reels have been tested for maximum fault current rating and can be tested without removing
from the truck.
?nbsp; The ground connection from reel to the vehicle is made during the initial installation.
?nbsp; Reels are designed to be bolted to the vehicle so they can be removed easily for transfer to new trucks.
?nbsp; Spring rewind drum for controlled payout and take up.
?nbsp; 4 way cable guide rollers allow for one man operation and prevents excessive wear on the ground cable.
?nbsp; Weather tight construction to prevent corrosion.
?nbsp; All cataloged ground reels with factory installed cables include a 6?length of 2/0 ground cable to connect
the reel to the truck. Item A30205, a 4 way bronze tee connector is provided to connect one end of the
cable to the ground stud on the reel. The other end must be connected to the truck frame by a suitable
means.

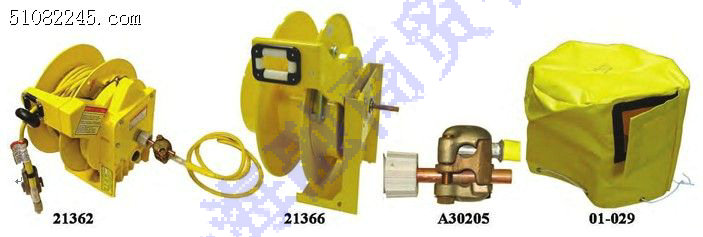

CAT NO DESCRIPTION LBS
21362 RETRACTABLE GROUNDING REEL ONLY
TESTED TO 27KA@ 15 CYCLES
32
21363 21362 REEL WITH 40?OF #2 YELLOW GROUND CABLE
FACTORY INSTALLED AND 21307 BRONZE CLAMP ONE END
47
21364 21362 REEL WITH 40?OF 1/0 YELLOW GROUND CABLE
FACTORY INSTALLED AND 21307 BRONZE CLAMP ONE END
53
21365 21362 REEL WITH 40?OF 2/0 YELLOW GROUND CABLE
FACTORY INSTALLED WITH 21307 BRONZE CLAMP ONE END
57
21366 LARGE RETRACTABLE GROUNDING REEL ONLY
TESTED TO 43KA@ 15 CYCLES
83
21373 21362 REEL WITH 50?OF #2 YELLOW GROUND CABLE
FACTORY INSTALLED WITH 21307 BRONZE CLAMP ONE END
50
21374 21362 REEL WITH 50?OF 1/0 YELLOW GROUND CABLE
FACTORY INSTALLED WITH 21307 BRONZE CLAMP ONE END
57
21375 21362 REEL WITH 50?OF 2/0 YELLOW GROUND CABLE
FACTORY INSTALLED WITH 21307 BRONZE CLAMP ONE END
62
01-029 COVER, YELLOW VINYL, FOR 21362 REEL 2.0
01-030 COVER, YELLOW VINYL, FOR 21366 REEL 2.5
FOR CUSTOM CABLE LENGTHS AND CLAMP CHANGES, CONTACT FACTORY FOR
ASSISTANCE.
