Safety:
Temporary personal protective equipment is designed for one purpose only, to protect the worker.
Grounding equipment should be manufactured to and maintained to the highest standards.
Standards:
Very stringent requirements are specified by the ASTM F855 standard. While this is a voluntary
standard, we design all our clamps, cables and ferrules to exceed the values of this standard.
The withstand values from ASTM are:
| Grade |
15( kAy) le |
30( kAy) le |
(aCbolp pSeir)e |
CoAR tRrtiMengStus |
| 1 |
14 |
10 |
#2 |
200 |
| 2 |
21 |
15 |
1/0 |
250 |
| 3 |
27 |
20 |
2/0 |
300 |
| 4 |
34 |
25 |
3/0 |
350 |
| 5 |
43 |
30 |
4/0 |
400 |
Quality:
Whether it’s the machining of the casting, the assembly of the clamp, or the assembly of the complete
grounding or jumper assembly, we pride ourselves in the quality of the product that is created at Hast-
ings. Every employee that handles the parts is vigilant for any quality issues.
Material:
Clamps are available in either bronze alloy or aluminum alloy metals. Great care is taken in selecting the
best materials for the performance required. The bronze alloys allow for higher strength and higher melt-
ing temperatures. Aluminum alloys allow for lighter weight and less resistance.
Experience:
Hastings works closely with the utility industry in solving grounding problems. Through our close con-
tact with our customers, we stay in touch with their needs and this guides our efforts for future product
designs. Hastings also participates in the development of industry standards.
MAXIMUM
MINIMUM
MAXIMUM
SIZE
CABLE
MAXIMUM
FAULT CURRENT
RATING
TERMINAL
TYPE
LBS
BRONZE

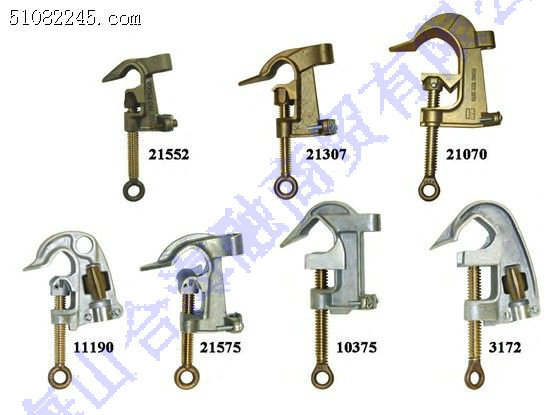

21070 SERRATED JAW 2.88 O.D. CABLE OR BUS
6 SOLID .16” DIA
4/0
43KA@ 15 CYCLES
30KA@ 30 CYCLES THREADED
3.3
21552 SERRATED JAW 500 MCM .813 DIA
8 SOLID .128 DIA
1.4
21307 SERRATED JAW 1.033 MCM ACSR 1.25 DIA
6 SOLID .16 DIA
2.3
ALUMINUM
21575 SERRATED JAW 1.50” DIA CABLE OR BUS
6 SOLID .16 DIA
4/0 43KA@ 15 CYCLES
30KA@ 30 CYCLES
THREADED
1.5
10375 SERRATED JAW
2” DIA CABLE OR BUS
4 SOLID .18 DIA
1.8
10376 SAME AS 10375
BUT WITH SMOOTH
UPPER JAW
1.8
11190 SERRATED JAW
1,0335 MCM ACSR 1.25 DIA
8 SOLID .12 DIA BOLTED
1.3
11192 SAME AS 11190
BUT WITH
SMOOTH UPPER JAW
1.3
3172 SMOOTH JAW 2” DIA CABLE OR BUS
6 SOLID .16 DIA
2.4
