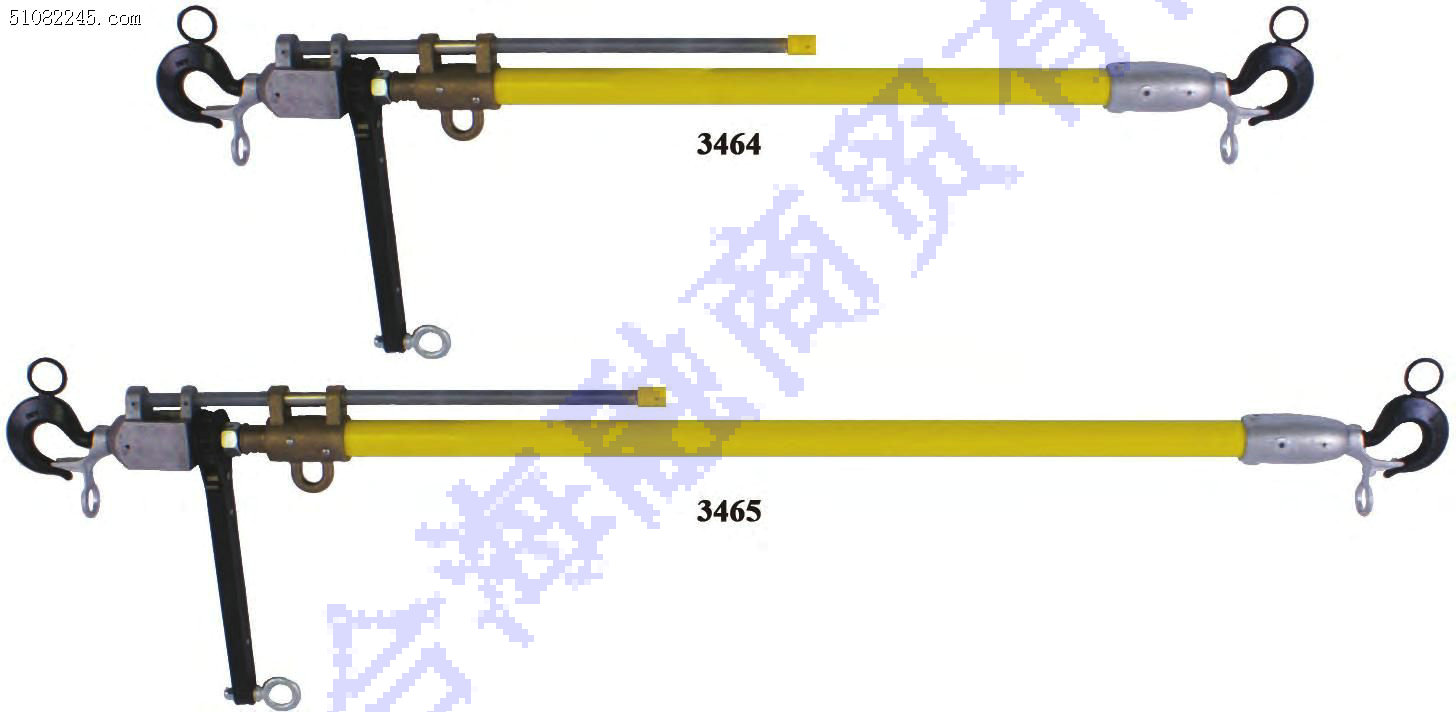

CONDUCTOR TENSION TOOL
• The conductor tension tool is an excellent tool for both hot stick and rubber gloving applications
• It can be used for temporarily isolating sections of lines, changing out dead end insulators and
line splicing
• Load limit 4,000 lbs.
• Tension tool can be installed and operated using hot sticks
• Two models available, 5KV to 35KV or 46KV to 69KV
• Conductor hooks have hot stick eyes and hot stick operable safety latches. Hooks are stationary.
• Metal components are heat treated aluminum alloy or bronze alloy
| CAT NO |
DESCRIPTION |
WORKING RANGE |
MAXIMUM TAKE UP |
INSULATION MIN /
MAX |
LENGTH STORED |
LENGTH EXTENDED |
LBS |
| 3464 |
5/35 KV TENSIONING TOOL |
57” TO 69” |
12” |
26” / 36” |
59” |
71” |
12.0 |
| 3465 |
46/69 KV TENSIONING TOOL |
69” TO 81” |
12” |
38” / 48” |
71” |
83” |
12.5 |
| 01-3464 |
STORAGE CASE FOR 3464 |
|
1.5 |
||||
| 01-3465 |
STORAGE CASE FOR 3465 |
|
2.0 |
||||
SUPER “U” ARM EXTENSIONS
• The Super “U” Arm is designed with a profile “U” shape for greater strength and durability. The many
features and benefits of the Super “U” Arm make it the best and most cost effective extension arm avail-
able for replacing conductors and insulators.
• All arms include insulated conductor holders to insure dielectric integrity. Arms are rated for 34.5KV
phase-to-phase work applications.
• Arms with the standard conductor holder will accept conductors up to 1 1/16” O.D. or up to 800 MCM.
• Arms with large capacity conductor holder, can accommodate a conductor inside a line hose. The gate
latch on the large capacity holder has an opening of 2 5/8”.
• The Super “U” design is stronger than the traditional style round extension arms. All Super “U” Arms
and Super “U” Conductor Supports have a load limit of 200 lbs. per wire holder.
• Interchangeable hanger loop kits are available for the different sizes of cross arms on your system.
| CAT NO |
DESCRIPTION |
NUMBER OF WIRE HOLDERS |
LOAD LIMIT POUNDS |
FITS MAXIMUM CROSS ARM SIZES |
LBS |
| 7545 |
STANDARD SUPER “U” ARM |
2 |
400 |
4 1/4” x 6 3/4” |
18.8 |
| 7546 |
SUPER “U” WITH LARGE HANGER LOOP |
2 |
400 |
6” x 6” |
20.4 |
| 7547 |
STANDARD SUPER “U” ARM |
1 |
200 |
4 1/4” x 6 3/4” |
15.4 |
| 7548 |
SUPER “U” WITH LARGE HANGER LOOP |
1 |
200 |
6” x 6” |
17.0 |
| 7553 |
STANDARD SUPER “U” WITH LARGE
CAPACITY HOLDERS |
2 |
400 |
4 1/4” x 6 3/4” |
19.8 |
| 7549 |
REPLACEMENT LOOP KIT TO FIT CROSS
ARMS |
|
|
4 1/4” x 6 3/4” |
1.0 |
| 7550 |
REPLACEMENT LOOP KIT TO FIT CROSS
ARMS |
|
|
6” x 6” |
1.8 |
| 7551 |
REPLACEMENT CONDUCTOR HOLDER -
STANDARD SIZE |
|
|
|
1.2 |
| 7552 |
REPLACEMENT CONDUCTOR HOLDER -
LARGE CAPACITY |
|
|
|
1.5 |
| 5-20416-5 |
REPLACEMENT EYE SCREW |
|
|
|
|
