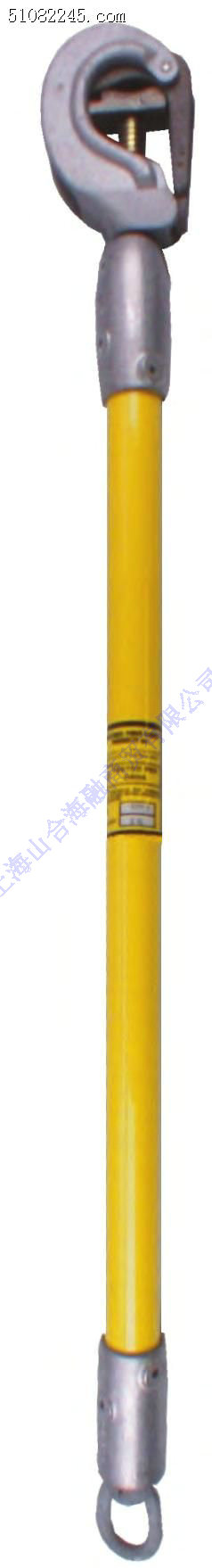

WIRE TONGS
Wire tongs are usually used in pairs with supporting accessories to support and move ener-
gized conductors away from the work area for replacement of insulators, cross arms, poles
and hardware.
FEATURES AND BENEFITS:
• Metal components are heat treated aluminum alloy or bronze alloy
• Conductor jaws are interlocking to keep conductor positively engaged
• Two conductor head sizes are available to accommodate a wide range of conductor sizes
• Acme threads facilitate tightening of head

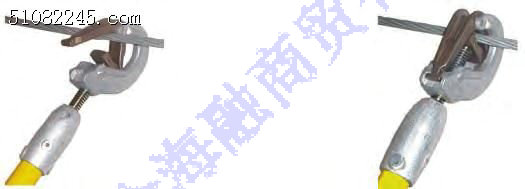

Medium head has spring loaded latch which makes
installation of wire tong safe and easy. The weight
of the tool closes the latch on the conductor. The
wire tong is then tightened to secure conductor into
position.
MEDIUM HEAD 3/16” TO 2” WIRE
CAT NO SIZE LBS
5679-8 1
1/2” x 8’10” 5.5
5679-10 1 1/2” x
10’10” 6.3
5671-8 2” x 8’10” 7.5
5671-10 2”
x 10’10” 8.5
5671-12 2”
x 12’10” 9.6
5672-10 2 1/2” x
10’10” 14.4
5672-12 2 1/2” x
12’10” 16.1
5672-14 2 1/2” x
14’10” 18.1
5672-16S* 2 1/2” x 16’10” 22.3
5673-12 3”
x 12’10” 20.2
5673-14 3”
x 14’10” 22.7
*POLE IS DESIGNED WITH METAL
SPLICE IN CENTER
LARGE HEAD 5/8” TO 2 1/2” WIRE
CAT NO SIZE LBS
5315-8 1
1/2” x 8’10” 7.0
5315-10 1 1/2” x
10’10” 7.8
5320-8 2” x 8’10” 9.0
5320-10 2”
x 10’10” 10.0
5320-12 2”
x 12’10” 12.1
5325-10 2 1/2” x
10’10” 15.9
5325-12 2 1/2” x
12’10” 17.6
5325-14 2 1/2” x
14’10” 19.6
----- ----- -----
5330-12 3”
x 12’10” 21.7
5330-14 3”
x 14’10” 24.2
