FEATURES |
Multi-purpose Tone Generator
● Four transmitter plug types
- RJ-11 - RJ-45
- COAX - Alligator clips
● Two unique audible tones:
- Fast alternating tone
- Slow alternating tone
● Telephone line polarity check
- Tip side
- Ring side
● Cable tracing
● Telephone line status check
- Clear line
- Busy line
- Ringing line
● Continuity check.
● Transmitter plug storage.
● Easy to store different kinds of transmitter
plugs (RJ-11, RJ-45, COAX, and alligator clips).
● Easy to carry.
● Flashlight function.
Amplifier Probe
● The Amplifier Probe is designed to identify
and trace wires or cables within a group
without damaging the insulation.
● Works with any Tone Generator to identify wires.
● Volume control for increased sensitivity and
adjustable to suit work environment.
● Recessed ON/OFF button prevents battery drain.
● A phone jack is designed for headset or handset.
Non-contact Voltage Detector
● Non-contact voltage detection :
50V ~ 1000V AC
● Frequency : 50 ~ 500 Hz
● Measurement category : CAT IV 1000V.
● Indication : LED and Tone
● Bright LED and audible alarm sound when voltage is present.
● Designed for Non-contact voltage detection. It's safer.
● Can be used to find a break in a wire.
● Flashlight function.
● NCV Test button design.
● Operating Conditions :
Temperature : 0 ~ 40°C
Humidity : Less than 80% R.H.
Altitude : 2000 m (6500 feet) maximum
● For indoor use only.
● Pollution degree : 2.
|
|
SPECIFICATIONS |
|
Multi-purpose Tone Generator /
Non-contact Voltage Detector |
168 CB-G |
Waveform |
Square wave |
Frequency |
1kHz±15% |
Over Voltage Protection |
80V DC |
Alternating Tone |
Fast and Slow |
Connection |
RJ-11 connector
RJ-45 connector
COAX connector
Alligator clip x 2 |
Power Source |
9V battery |
Dimensions |
202(L) x 86(W) x 46(H)mm |
Weight |
Approx. 300g (battery included) |
Amplifier Probe |
|
168 CB-A |
Frequency
detection |
1Hz~12kHz |
Receiver distance |
< 50cm |
Sensitivity control |
ˇ |
Flashlight |
ˇ |
Probe tip |
Fixed |
Power Source |
9V battery |
Dimensions |
230(L) x 57(W) x 27(H)mm |
Weight |
Approx. 125g (battery included) |
General |
|
|
Operating Temperature &
Humidity |
0~40C, 80% Max. |
Storage Temperature &
Humidity |
-10~50C, 80% Max. |
Safety standard |
|
|
|
|
|

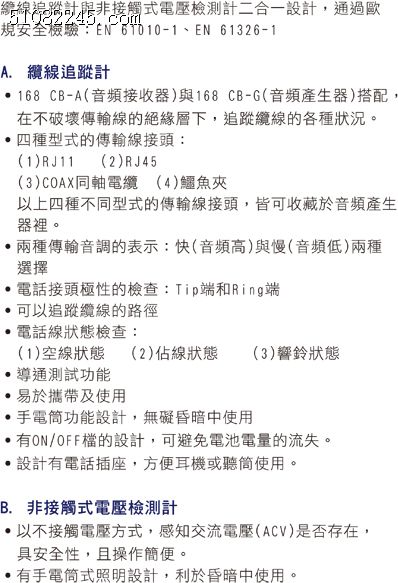

特 點
