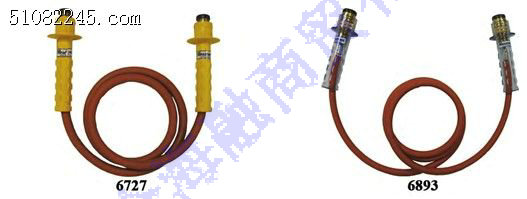

15KV FACTORY ASSEMBLED JUMPERS
WITH MEDIUM RANGE HEADS - YELLOW
CAT NO SIZE AWG LENGTH LBS
6727 #2 8’ 6.7
6728 #2 10’ 7.6
6729 #2 12’ 8.5
6730 1/0 8’ 8.0
6731 1/0 10’ 9.2
6732 1/0 12’ 10.4
6733 2/0 8’ 8.9
6734 2/0 10’ 10.3
6735 2/0 12’ 11.7
6736 4/0 8’ 11.6
6737 4/0 10’ 13.7
6738 4/0 12’ 15.8
NOTE: FOR
LENGTHS NOT LISTED,
CONTACT FACTORY FOR ASSISTANCE.
15KV FACTORY ASSEMBLED JUMPERS
WITH MEDIUM RANGE HEADS - CLEAR
CAT NO SIZE AWG LENGTH LBS
6884 #2 8’ 6.7
6885 #2 10’ 7.6
6886 #2 12’ 8.5
6887 1/0 8’ 8.0
6888 1/0 10’ 9.2
6889 1/0 12’ 10.4
6890 2/0 8’ 8.9
6891 2/0 10’ 10.3
6892 2/0 12’ 11.7
6893 4/0 8’ 11.6
6894 4/0 10’ 13.7
6895 4/0 12’ 15.8
NOTE: FOR LENGTHS NOT LISTED,
CONTACT FACTORY FOR ASSISTANCE.
| 15KV FACTORY ASSEMBLED JUMPERS WITH LARGE RANGE HEADS - YELLOW |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6739 |
#2 |
8’ |
8.9 |
| 6740 |
#2 |
10’ |
9.8 |
| 6741 |
#2 |
12’ |
10.7 |
| 6742 |
1/0 |
8’ |
10.2 |
| 6743 |
1/0 |
10’ |
11.4 |
| 6744 |
1/0 |
12’ |
12.6 |
| 6745 |
2/0 |
8’ |
11.1 |
| 6746 |
2/0 |
10’ |
12.5 |
| 6747 |
2/0 |
12’ |
13.9 |
| 6748 |
4/0 |
8’ |
13.8 |
| 6749 |
4/0 |
10’ |
15.9 |
| 6750 |
4/0 |
12’ |
18.0 |
| NOTE: FOR LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
| 15KV FACTORY ASSEMBLED JUMPERS WITH LARGE RANGE HEADS - CLEAR |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6901 |
#2 |
8’ |
8.9 |
| 6902 |
#2 |
10’ |
9.8 |
| 6903 |
#2 |
12’ |
10.7 |
| 6904 |
1/0 |
8’ |
10.2 |
| 6905 |
1/0 |
10’ |
11.4 |
| 6906 |
1/0 |
12’ |
12.6 |
| 6907 |
2/0 |
8’ |
11.1 |
| 6908 |
2/0 |
10’ |
12.5 |
| 6909 |
2/0 |
12’ |
13.9 |
| 6910 |
4/0 |
8’ |
13.8 |
| 6911 |
4/0 |
10’ |
15.9 |
| 6912 |
4/0 |
12’ |
18.0 |
| NOTE: FOR
LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
| 25KV FACTORY ASSEMBLED JUMPERS WITH MEDIUM RANGE HEADS - CLEAR |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6897 |
2/0 |
8’ |
10.4 |
| 6898 |
2/0 |
10’ |
12.2 |
| 6899 |
2/0 |
12’ |
14.0 |
| 6900 |
2/0 |
14’ |
15.8 |
| NOTE: FOR
LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
| 25KV FACTORY ASSEMBLED JUMPERS WITH LARGE RANGE HEADS - YELLOW |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6875 |
2/0 |
8’ |
12.6 |
| 6876 |
2/0 |
10’ |
14.4 |
| 6877 |
2/0 |
12’ |
16.2 |
| 6878 |
2/0 |
14’ |
18.0 |
| NOTE: FOR LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
| 25KV FACTORY ASSEMBLED JUMPERS WITH LARGE RANGE HEADS - CLEAR |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6913 |
2/0 |
8’ |
12.6 |
| 6914 |
2/0 |
10’ |
14.4 |
| 6915 |
2/0 |
12’ |
16.2 |
| NOTE: FOR
LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
| 35KV FACTORY ASSEMBLED JUMPERS WITH LARGE RANGE HEADS - YELLOW |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6860 |
1/0 |
8’ |
14.3 |
| 6861 |
1/0 |
10’ |
16.4 |
| 6862 |
1/0 |
12’ |
18.6 |
| 6863 |
1/0 |
14’ |
20.8 |
| NOTE: FOR LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
| 35KV FACTORY ASSEMBLED JUMPERS WITH LARGE RANGE HEADS - CLEAR |
|||
| CAT NO |
SIZE AWG |
LENGTH |
LBS |
| 6916 |
1/0 |
8’ |
14.3 |
| 6917 |
1/0 |
10’ |
16.4 |
| 6918 |
1/0 |
12’ |
18.6 |
| NOTE: FOR
LENGTHS NOT LISTED, CONTACT FACTORY FOR ASSISTANCE. |
|||
