Proximity Voltage Detector

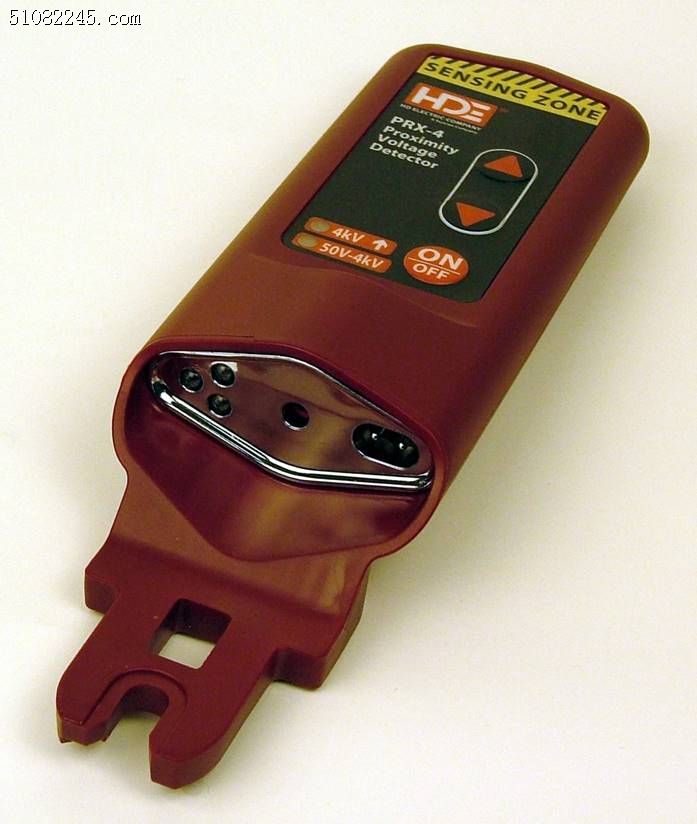

The PRX-4 Proximity Voltage Detector provides utility professionals, arborists and first responders with a safety tool that will alert them to potentially dangerous high voltage in their work areas. The PRX-4 is a non contact detector with two voltage ranges:
· 50V – 4kV, 3” (8cm) detection range
· 4kV – UP, 10” (25cm) detection range
The PRX-4 utilizes a rugged, durable, water resistant housing with dual hotstick connections - universal spline and shotgun stick. All of this is achieved while weighing less than 1 pound (.45kg).
Proximity Voltage Detector Features
· Sealed to resist water penetration in typical outdoor environments
· Two voltage ranges from 50V to 4kV and above 4kV
· Detects voltages typically 3” (8cm) from the source at the 50V setting and 4kV at 10” (25cm) at the 4kV setting
· Higher voltages result in greater detection distances
· Rechargeable battery with quick recharge - 15 minutes for a full day of use
· Heartbeat signal assures that the PRX is ready to detect voltage
· Rugged, durable housing
· Dual hotstick connections - universal spline & shotgun stick
· Loud beeper and LED lights indicate voltage
· Weighs less than 1 pound (0.45 kg)
· Easy to use electronic touch pad with large buttons
· Can be used on 50Hz and 60Hz systems
HD Electric Company is committed to ongoing review and improvement of its product lines, and thus reserves the right to modify product design and specifications without notice.
PRX系列非接触式验电器
PRX系列非接触式验电器体积轻巧，便于携带。无需接触带电导体即可达到验电功能，在现场作业尤其是需要连接长距离绝缘杆时，便于作业人员轻松作业。同时，每款PRX产品均有若干个电压量程，可以由用户自行选择需要检验的电压。该系列验电器 安全性能，电气性能以及验电功能均符合国家相关标准。
PRX系列包含以下型号：
PRX-500（Z高量程500KV）
PRX-69D（Z高量程69KV）
PRX-35D（Z高量程35KV）
PRX-4（4KV以下和4KV以上，自动量程）
产品特点：
多量程电压选择
声光报警指示电压
可用于50/60Hz电力系统
快速充电，充电15分钟BZ一天使用
可通过市电或车载电源充电
可配合标准绝缘杆使用
PRX非接触式验电器参数表
|
PRX-500 |
PRX-35D |
PRX-4 |
PRX-69D |
电压量程 |
220(380)V/10KV/35KV/110KV/ 220KV/330KV/500KV |
220(380)V/10KV/35KV |
50-4KV/4KV 以上 |
120V/4KV/15KV/25 KV /35 KV /46 KV /69 KV |
自动量程 |
否 |
否 |
是 |
否 |
报警距离 |
25cm（典型值，4KV 以上电压） |
|||
电池使用寿命 |
验电>200 次（满电），电池充满时间 3 小时 |
|||
重量 |
<0.45kg |
|||
PRX非接触式验电器选型表
套装型号 |
套装详细配置 |
PRX-500/220P? |
PRX-500(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1) |
PRX-69D/220P |
PRX-69D(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1) |
PRX-35D/220P |
PRX-35(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1) |
PRX-4/220P |
PRX-4(1)/PRX-HS(1)/PRX-CORD(1)/PRX-XF(1)/PRX-CS(1) |
